HSS-E trapezoidal taps 29900-TR12X3

€

540.00

EX VAT

€

664.20

INC VAT

Walter Prototyp

HSS-E trapezoidal taps 29900-TR12X3

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

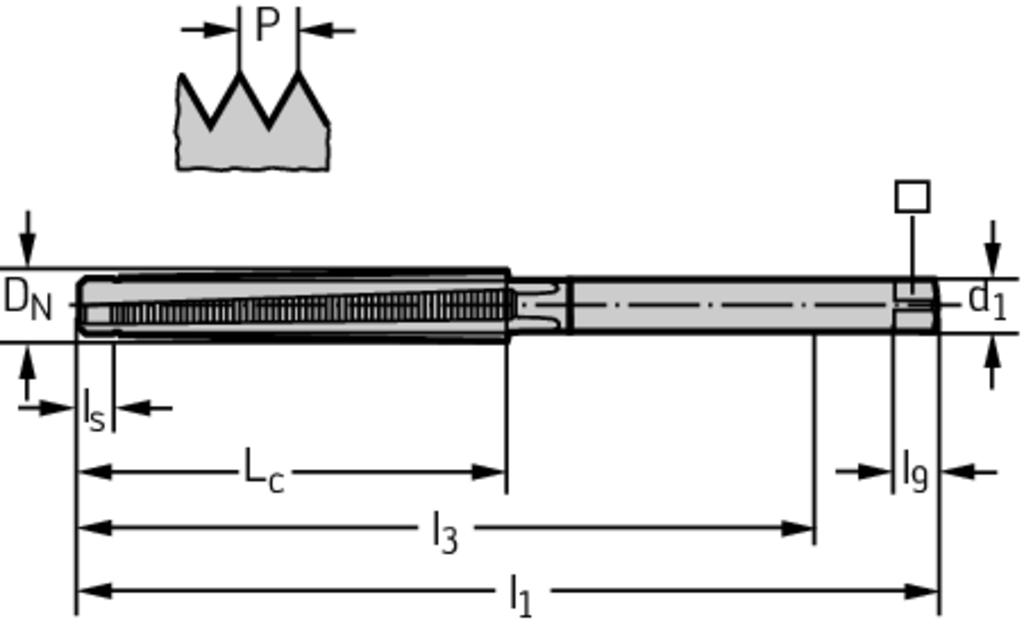

PRODUCT ATTRIBUTES

Tool designation (Designation) 29900-TR12X3

Thread size (D N) Tr 12x3

thread pitch (P) 3 mm

Functional length (l 1) 175 mm

Cutting edge length (L c) 90 mm

Useable length (l 3) 151 mm

Connection diameter (d 1) 8 mm

clamping width (⃞) 6,2 mm

Driving square length (l 9) 9 mm

Number of grooves (N) 3

Insert Shape

DESCRIPTION & FEATURES

HSS-E trapezoidal taps • TMB • ≤2xD • TR/7H • PWZ-NORM • right hand flute 5° • Suitable for through hole • Tr 12x3 • P=3mm

Article number (J21):

29900-TR12X3

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-80

Tool style code (BLD):

Thread form type (A1):

Thread diameter (A21):

12 mm

Thread designation outside (A25):

Tr 12x3

Thread pitch (A3):

3 mm

Thread tolerance class (A5):

Gate diameter (A6):

9,3 mm

Neck diameter (A9):

7,7 mm

Thread cutting part length (B1):

90 mm

Overall length (B3):

175 mm

Tap chamfer length (B4):

72 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

27 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

5 °

Weight of item (D7):

0,074 kg

Cutting direction (F1):

Left

Tap type identifier (G21):

Plug style (G3):

W-24

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Coating (H5):

unbeschichtet

Standard (J1):

PWZ-NORM

Data chip provision (J7):

Hole Type:

Through hole

Thread Type:
