HSS machine tapered reamers F3234-6

€

35.82

EX VAT

€

44.06

INC VAT

Walter Titex

HSS machine tapered reamers F3234-6

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

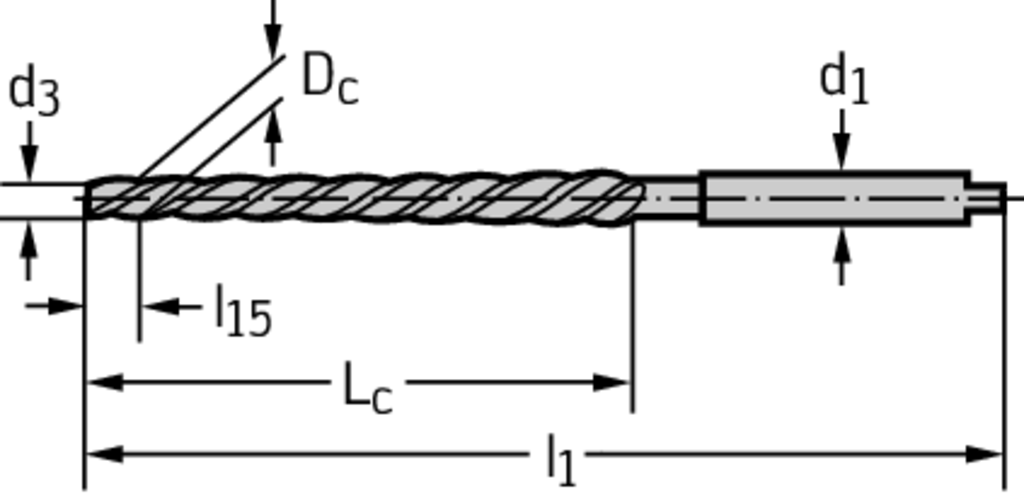

Tool designation (Designation) F3234-6

Cutting edge diameter (D c) 6 mm

Cutting edge length (L c) 105 mm

Overall length (l 1) 160 mm

Distance reference point PK (l 15) 5 mm

Shank diameter (d 1) 8 mm

Cutting diameter (d 3) 5,9 mm

Number of teeth (Z) 3

Insert Shape F3

DESCRIPTION & FEATURES

HSS machine tapered reamers F3234 • DIN 2179 • Cylindrical shank • left hand flute • Dc=6mm • taper diameter minimum=5,9mm

Article number (J21):

F3234-6

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-126

Tool style code (BLD):

Cutting diameter 1st step minimum (A11):

6 mm

Taper diameter smallest (A71):

5,9 mm

Usable length (B4):

105 mm

Overall length (B5):

160 mm

Functional length (B71):

155 mm

Distance reference point PK (B9):

5 mm

Connection code type machine side (C11):

ZYL

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

8 mm

ISO-tolerance class shank diameter (C31):

Shank length (C4):

36 mm

Flute count (D1):

Flute helix hand (D2):

Flute helix angle (D3):

45 °

Rotational speed maximum (D6):

5000 1/min

Weight of item (D7):

0,037 kg

Taper ratio (E5):

0.02000000

Cutting direction (F1):

Right

Coolant entry style code (H21):

Coolant exit style code (H22):

Grade manufacturer's designation (H3):

UNBESCHICH

Body material code (H4):

Standard (J1):

DIN 2179

Size to the standard number (J12):

Data chip provision (J7):
