Indexable insert drill with cartridge D4170-03-70.00N8-P46Indexable insert drill with cartridge D4170-03-70.00N8-P46
Indexable insert drill with cartridge D4170-03-70.00N8-P46 Indexable insert drill with cartridge D4170-03-70.00N8-P46

Indexable insert drill with cartridge D4170-03-70.00N8-P46

€
1,556.00
EX VAT
€
1,913.88
INC VAT
Walter
Indexable insert drill with cartridge D4170-03-70.00N8-P46
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

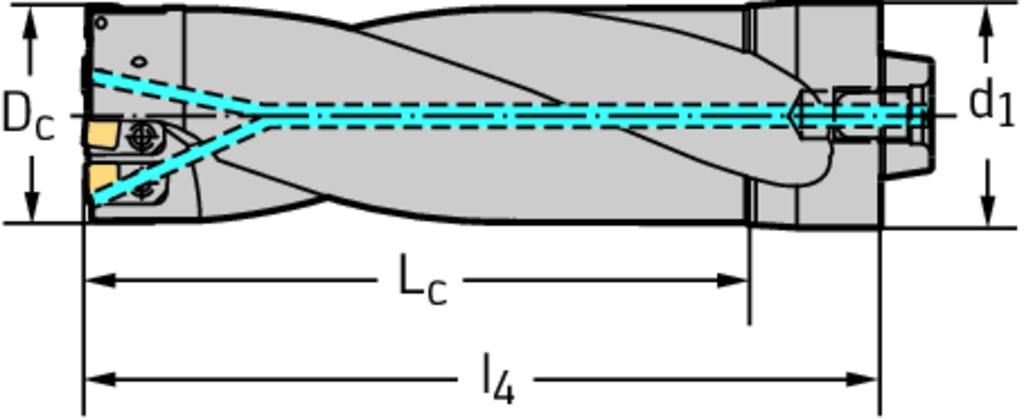

Tool designation (Designation) D4170-03-70.00N8-P46
Cutting edge diameter (D c) 70 mm
Cutting edge length (L c) 210 mm
Maximum projection length (l 4) 260 mm
connection diameter (d 1) NCT 80 mm
weight of item 4,9 kg
Number of indexable inserts (No. of indexable inserts) 3
Insert Shape D4
DESCRIPTION & FEATURES
Indexable insert drill with cartridge D4170 • 3xD • Modular NCT adaptor • metric • Dc=70mm
Article number (J21):
D4170-03-70.00N8-P46
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-86
Tool style code (BLD):
1
Cutting diameter 1st step minimum (A11):
70 mm
Protruding length (B3):
260 mm
Usable length (B4):
210 mm
Overall length (B5):
278 mm
Length chip flute (B6):
239 mm
Point length (B7):
1,6 mm
Functional length (B71):
258,4 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0800
Connection diameter machine side (C3):
80 mm
Shank length (C4):
18 mm
Effective cutting edge count 1st step (D11):
1
Rotational speed maximum (D6):
2300 1/min
Weight of item (D7):
4,94 kg
Point angle 1st step (E1):
176 °
Cutting direction (F1):
Right
Flute helix angle (Flute_Helix):
22 °
Flute helix hand (Flute_Helix_Direction):
R
Clamping type code 1st step (G11):
S
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
