Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FM4 WSM20SIndexable inserts copy turning system WL...-VC... WL25-VC0704R-FM4 WSM20S
Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FM4 WSM20S Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FM4 WSM20S

Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FM4 WSM20S

€
13.08
EX VAT
€
16.09
INC VAT
Walter
Indexable inserts copy turning system WL...-VC... WL25-VC0704R-FM4 WSM20S
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

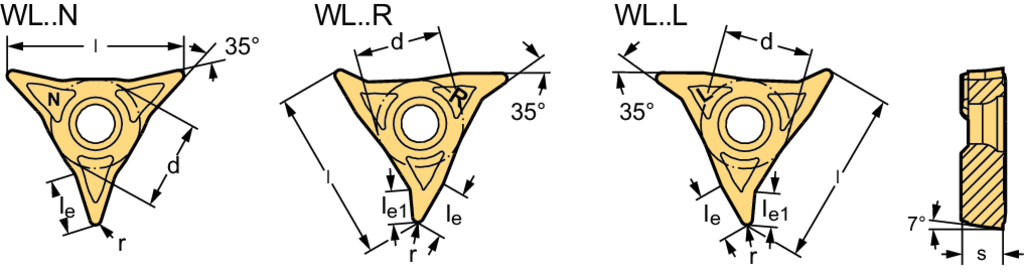

Tool designation (Designation) WL25-VC0704R-FM4 WSM20S
Corner radius (r) 0,4 mm
Cutting edge length (l) 25 mm
Limited cutting edge length (l e) 6,2 mm
Limited cutting edge length (l e1) 3,9 mm
Feed per revolution (f) 0,05 - 0,2 mm
Depth of cut (a p) 0,1 - 2 mm
Insert Shape WL
DESCRIPTION & FEATURES
Indexable inserts copy turning system WL...-VC... ...-FM4 • Tigertec Silver • WSM20S • r=0,4mm
Article number (J21):
WL25-VC0704R-FM4 WSM20S
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
0
Insert included angle (A1):
35 °
Clearance angle major (A2):
7 °
Cutting edge length (B1):
25 mm
Inscribed circle diameter (B3):
12,7 mm
Insert thickness (C1):
4,76 mm
Corner radius (D1):
0,4 mm
Weight of item (D75):
0,014 kg
Cutting edge condition code (E41):
E
Cutting edge effective length (E7):
6,2 mm
Chip breaker manufacturers designation (E9):
FM4
Insert hand (F1):
R
Insert index count (F2):
3
Tolerance class insert (G1):
M
Insert thickness total (G4):
4,76 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
5,5 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WSM20S
Coating (H5):
TiAlN+Al2O3+(Al)
Tipped cutting edge code (H6):
S
