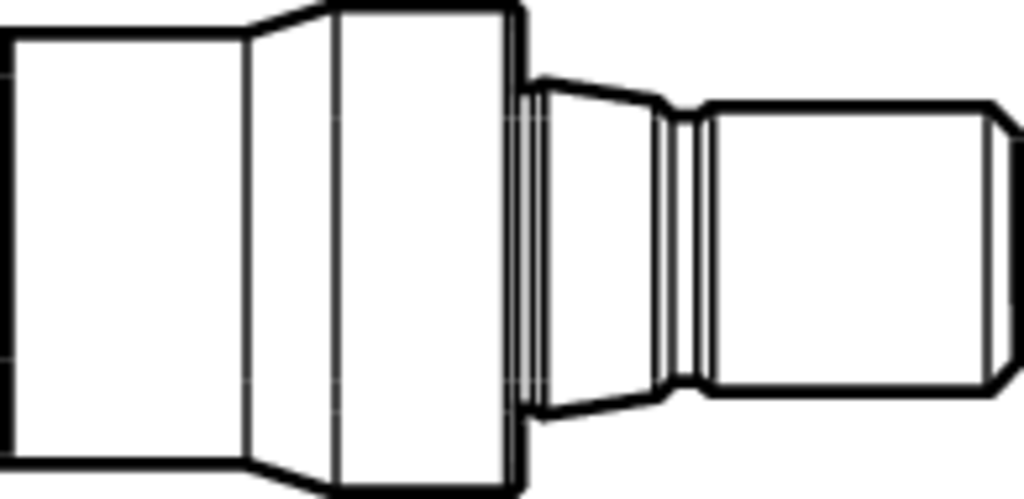

Intermediate element AA704.B26-G32-050-BIntermediate element AA704.B26-G32-050-B
Intermediate element AA704.B26-G32-050-B Intermediate element AA704.B26-G32-050-B

Intermediate element AA704.B26-G32-050-B

€
435.00
EX VAT
€
535.05
INC VAT
Walter
Intermediate element AA704.B26-G32-050-B
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES
Tool designation (Designation) AA704.B26-G32-050-B
Body diameter (d 12) 2,284 inch
Functional length (l 4) 1,862 inch
weight of item 0,8 lbs
Insert Shape AA
DESCRIPTION & FEATURES
Intermediate element AA704 • inch • d1=1
Article number (J21):
AA704.B26-G32-050-B
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Body diameter (A1):
58 mm
Body length 1 (B1):
47,3 mm
Protruding length (B3):
47,3 mm
Overall length (B4):
49,5 mm
Functional length (B71):
47,3 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
12
Connection code unit base machine side (C14):
2
Connection code style machine side (C15):
0
Connection size code machine side (C2):
1000
Connection diameter machine side (C3):
25,4 mm
Rotational speed maximum (D6):
3200 1/min
Weight of item (D7):
0,804 kg
Kappa (E2):
0 °
Diameter access hole (G32):
21 mm
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Data chip provision (J7):
0
