Intermediate element AA766-T45-G16-050

€

479.00

EX VAT

€

589.17

INC VAT

Walter

Intermediate element AA766-T45-G16-050

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) AA766-T45-G16-050

Connection size code (d 1) T45

Connection diameter (d 11) 38 mm

Functional length (l 4) 47,3 mm

Body length (l 18) 0,917 inch

weight of item 0,57 kg

Insert Shape AA

DESCRIPTION & FEATURES

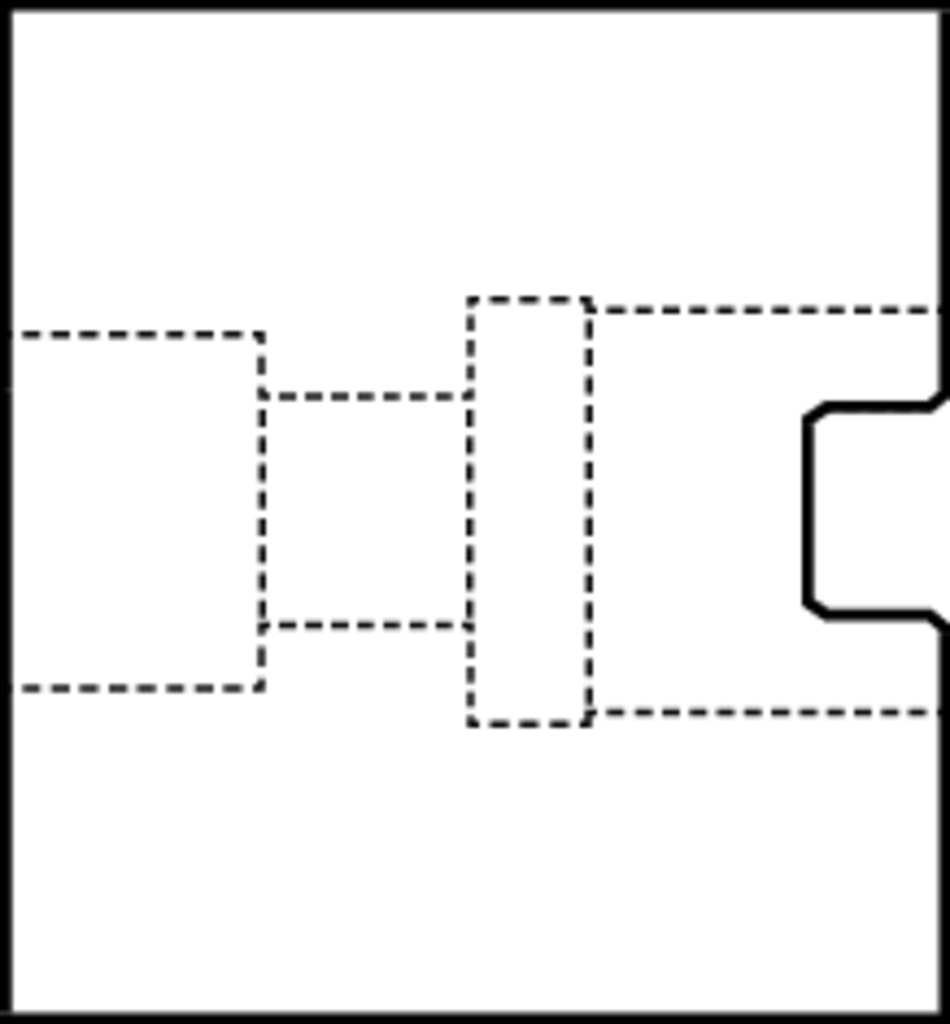

Intermediate element AA766 • ScrewFit • metric

Article number (J21):

AA766-T45-G16-050

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

38 mm

Flange diameter (A4):

45 mm

Body length 1 (B1):

23,3 mm

Protruding length (B3):

20 mm

Overall length (B4):

49,5 mm

Functional length (B71):

47,3 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection thread nominal size machine side (C13):

M20

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0450

Connection diameter machine side (C3):

45 mm

Rotational speed maximum (D6):

4000 1/min

Weight of item (D7):

0,568 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Data chip provision (J7):
