Internal thread turning inserts – 55° partial profile NTS NTS-IR-11 A55 WMP32Internal thread turning inserts – 55° partial profile NTS NTS-IR-11 A55 WMP32
Internal thread turning inserts – 55° partial profile NTS NTS-IR-11 A55 WMP32 Internal thread turning inserts – 55° partial profile NTS NTS-IR-11 A55 WMP32

Internal thread turning inserts – 55° partial profile NTS NTS-IR-11 A55 WMP32

€
20.92
EX VAT
€
25.73
INC VAT
Walter
Internal thread turning inserts – 55° partial profile NTS NTS-IR-11 A55 WMP32
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

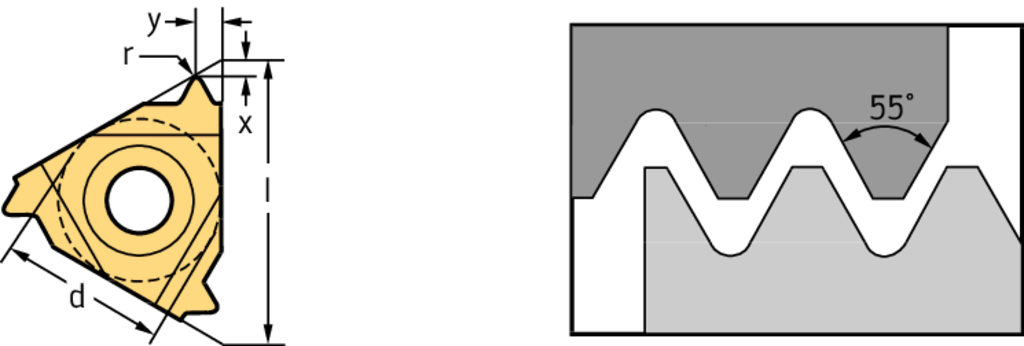

Tool designation (Designation) NTS-IR-11 A55 WMP32
Pitch (Pitch (P)) 0,5 - 1,5 mm
Pitch (in inches) (Lead (TPI)) 48 - 16 inch
Cutting edge length (l) 11 mm
Diameter of inscribed circle (d) 6,35 mm
Corner radius (r) 0,05 mm
Profile spacing ex (X) 0,8 mm
Profile spacing ey (Y) 0,9 mm
Insert Shape NT
DESCRIPTION & FEATURES
Internal thread turning inserts – 55° partial profile NTS • WMP32 • minimum thread pitch=0,5-1,5mm • maximum threads per inch=48-16
Article number (J21):
NTS-IR-11 A55 WMP32
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-77
Tool style code (BLD):
8
Thread form type (A5):
VP55
Thread pitch minimum (A61):
0,5 mm
Thread pitch maximum (A62):
1,5 mm
Threads per inch minimum (A71):
16
Threads per inch maximum (A72):
48
Profile distance X (A9):
0,9 mm
Profile distance ey (A91):
0,8 mm
Profile included angle (B5):
55 °
Spot radius (C8):
0,05 mm
Weight of item (D75):
0,001 kg
Clearance angle major (E1):
0 °
Chip breaker face count (E6):
1
Insert hand (E7):
R
Chip breaker manufacturers designation (E9):
A27
Thread type (F1):
I
Flute count (F2):
3
Tooth count (F3):
1
Thread profile type (F4):
P
Inscribed circle diameter (G3):
6,35 mm
Insert thickness total (G4):
3,17 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
3,25 mm
Insert thickness (G7):
3,17 mm
Grade manufacturer's designation (H3):
WMP32
Coating (H5):
TiAlN
Tipped cutting edge code (H6):
S
