MAS-BT JIS B 6339 adaptor AK541 AK541.BT40.T18.085CO

MAS-BT JIS B 6339 adaptor AK541 AK541.BT40.T18.085CO

€

214.00

EX VAT

€

263.22

INC VAT

Walter

MAS-BT JIS B 6339 adaptor AK541 AK541.BT40.T18.085CO

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

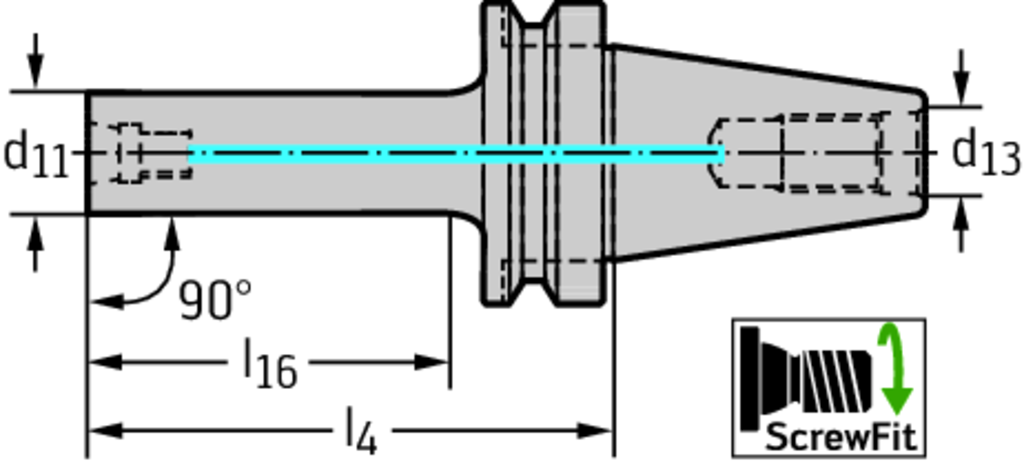

Tool designation (Designation) AK541.BT40.T18.085CO

Connection size code (d 1) BT40

Connection diameter (d 11) T18

Functional length (l 4) 85 mm

Useable length (l 16) 58 mm

Pull stud, thread size (d 13) M16

weight of item 1,11 kg

Insert Shape AK

DESCRIPTION & FEATURES

MAS-BT JIS B 6339 adaptor AK541 • metric • Cutting edge-oriented (CO) • d1=40 • d11=T18

Article number (J21):

AK541.BT40.T18.085CO

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

18,5 mm

Flange diameter (A4):

63 mm

Body length 1 (B1):

58 mm

Protruding length (B3):

85 mm

Overall length (B4):

153,4 mm

Functional length (B71):

85 mm

Connection code type machine side (C11):

SKG

Connection code form at machine side (C12):

Connection thread nominal size machine side (C13):

M16

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

18,5 mm

Shank length (C4):

65,4 mm

Connection code type workpiece side (C51):

SAW

Connection code form at workpiece side (C52):

Connection thread nominal size workpiece side (C53):

M16

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0180

Rotational speed maximum (D6):

12000 1/min

Weight of item (D7):

1,11 kg

Kappa (E2):

0 °

Mounting hole count (G35):

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

MAS403-BT

Standard letter to the standard number (J11):

Data chip provision (J7):
