Negative heptagonal XNHF070508-D57 WKP25S

Negative heptagonal XNHF070508-D57 WKP25S

€

24.88

EX VAT

€

30.60

INC VAT

Walter

Negative heptagonal XNHF070508-D57 WKP25S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

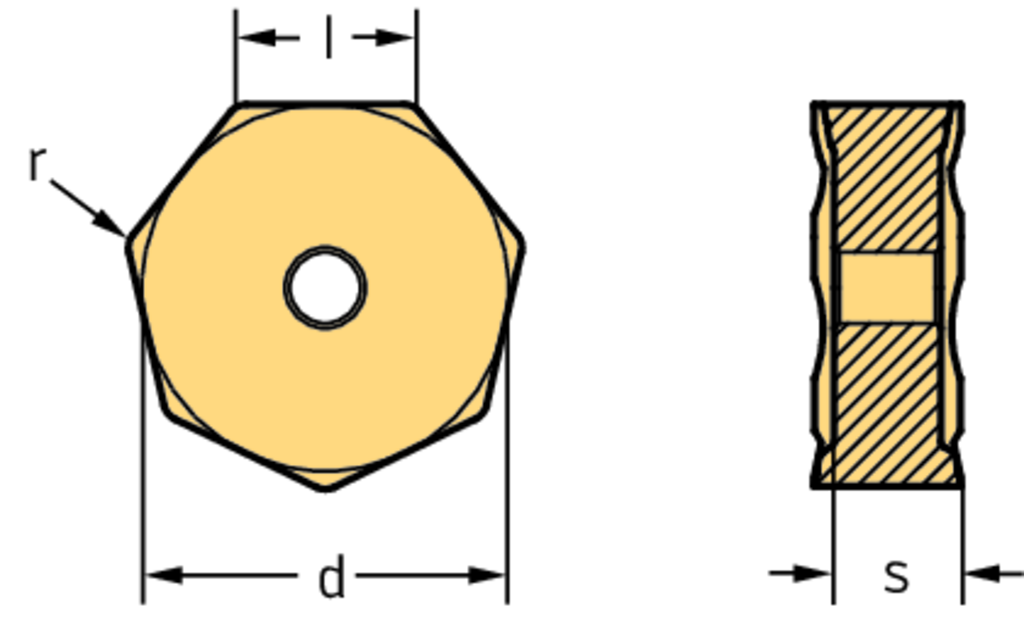

Tool designation (Designation) XNHF070508-D57 WKP25S

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 14

Diameter of inscribed circle (d) 14,5 mm

cutting edge length (l) 7 mm

Insert thickness (s) 5 mm

Corner radius (r) 0,8 mm

Insert Shape XN

DESCRIPTION & FEATURES

Negative heptagonal XNHF ...-D57 • clearance angle major=0° • WKP25S • Tigertec Silver • Corner radius=0,8mm

Article number (J21):

XNHF070508-D57 WKP25S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

128,57 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

7 mm

Inscribed circle diameter (B3):

14,5 mm

Insert thickness (C1):

5 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,012 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

D57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,2 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,8 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP25S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

XNHF070508
