Negative heptagonal XNMU070508-F57 WKP35S

Negative heptagonal XNMU070508-F57 WKP35S

€

19.16

EX VAT

€

23.57

INC VAT

Walter

Negative heptagonal XNMU070508-F57 WKP35S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

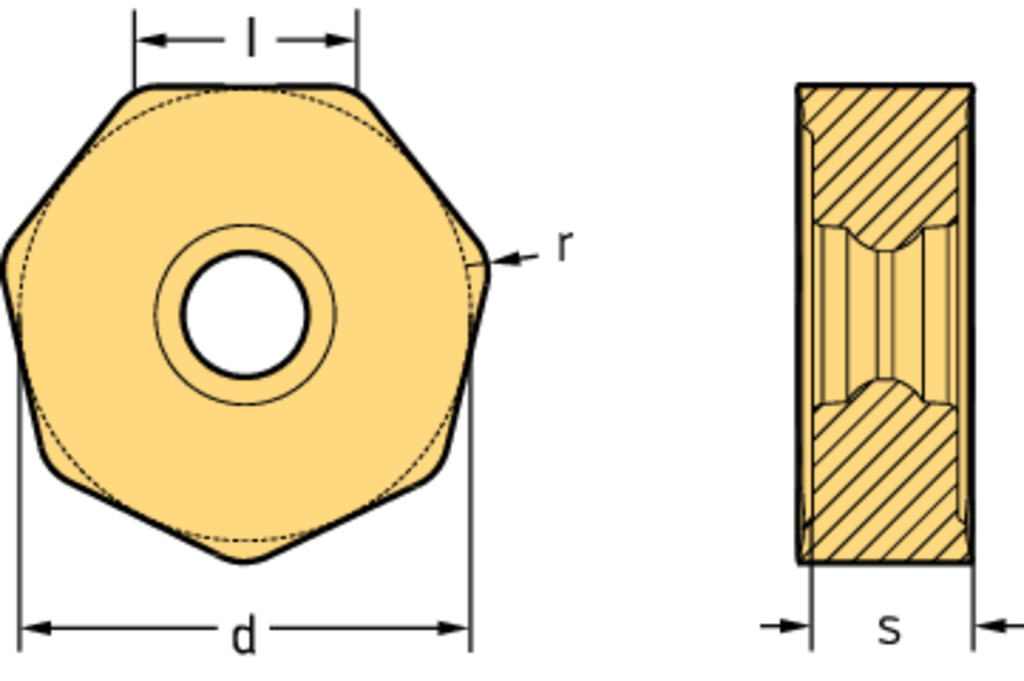

Tool designation (Designation) XNMU070508-F57 WKP35S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 14

Diameter of inscribed circle (d) 14,5 mm

cutting edge length (l) 6,98 mm

Insert thickness (s) 5 mm

Corner radius (r) 0,8 mm

DESCRIPTION & FEATURES

Negative heptagonal XNMU ...-F57 • clearance angle major=0° • WKP35S • Tigertec Silver • Corner radius=0,8mm

Article number (J21):

XNMU070508-F57 WKP35S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

128,57 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

6,98 mm

Inscribed circle diameter (B3):

14,5 mm

Insert thickness (C1):

5 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,011 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,6 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,07 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP35S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

XNMU070508
