Negative octagonal ONHF ONHF050408-F67 WKP25S

Negative octagonal ONHF ONHF050408-F67 WKP25S

€

24.15

EX VAT

€

29.70

INC VAT

Walter

Negative octagonal ONHF ONHF050408-F67 WKP25S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

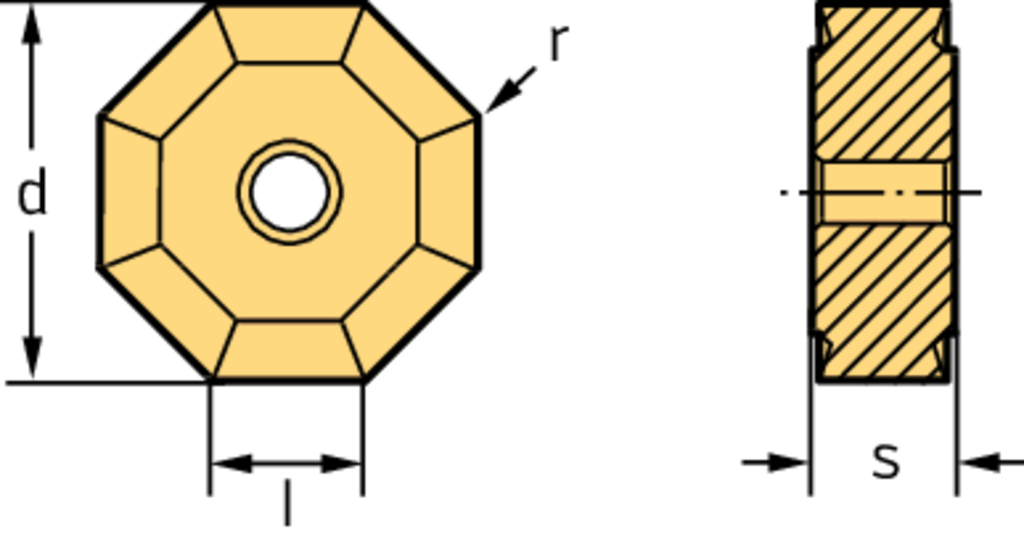

Tool designation (Designation) ONHF050408-F67 WKP25S

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 16

Diameter of inscribed circle (d) 12,7 mm

cutting edge length (l) 5,26 mm

Insert thickness (s) 4,76 mm

Corner radius (r) 0,8 mm

Insert Shape ON

DESCRIPTION & FEATURES

Negative octagonal ONHF ...-F67 • clearance angle major=0° • WKP25S • Tigertec Silver • Corner radius=0,8mm

Article number (J21):

ONHF050408-F67 WKP25S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

135 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

5,26 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,009 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F67

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP25S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

ONHF050408
