Negative octagonal ONMU050408-D57 WKP35G

Negative octagonal ONMU050408-D57 WKP35G

€

21.77

EX VAT

€

26.78

INC VAT

Walter

Negative octagonal ONMU050408-D57 WKP35G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

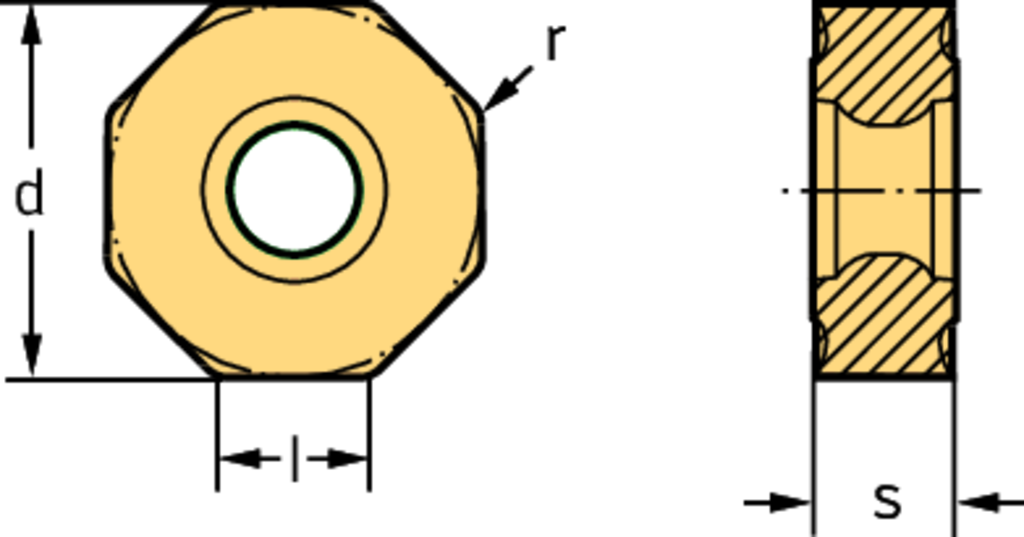

Tool designation (Designation) ONMU050408-D57 WKP35G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 16

Diameter of inscribed circle (d) 12,7 mm

cutting edge length (l) 5,26 mm

Insert thickness (s) 4,86 mm

Corner radius (r) 0,8 mm

Insert Shape ON

DESCRIPTION & FEATURES

Negative octagonal ONMU ...-D57 • clearance angle major=0° • WKP35G • Tigertec Gold • Corner radius=0,8mm

Article number (J21):

ONMU050408-D57 WKP35G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

135 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

5,26 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,86 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,008 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

D57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,86 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP35G

Coating (H5):

TiAlN+TiN

Tipped cutting edge code (H6):

Standard designation (J11):

ONMU050408
