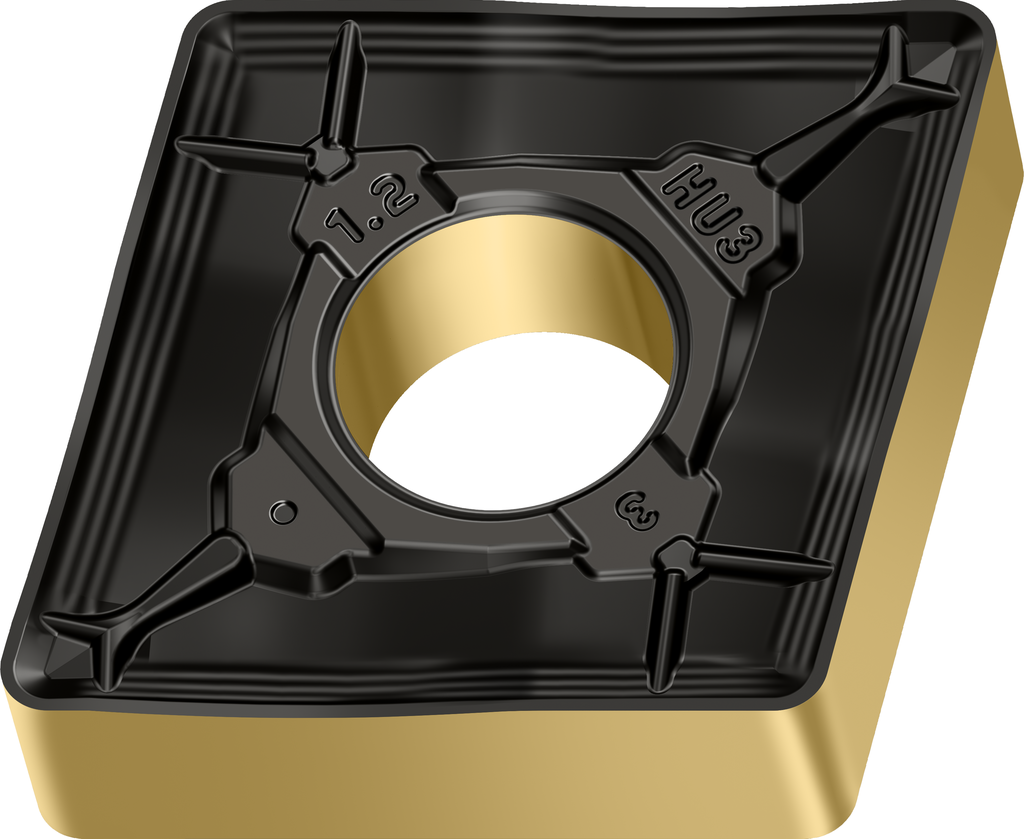

Negative rhombic 80° CNMM190624-HU3 WPP30G

Negative rhombic 80° CNMM190624-HU3 WPP30G

€

18.72

EX VAT

€

23.03

INC VAT

Walter

Negative rhombic 80° CNMM190624-HU3 WPP30G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

Tool designation (Designation) CNMM190624-HU3 WPP30G

Corner radius (r) 2,4 mm

Feed per revolution (f) 0,45 - 1,1 mm

Depth of cut (a p) 2,4 - 10 mm

DESCRIPTION & FEATURES

Negative rhombic 80° CNMM ...-HU3 • Tigertec Gold • WPP30G • r=2,4mm

Article number (J21):

CNMM190624-HU3 WPP30G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

80 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

19,344 mm

Inscribed circle diameter (B3):

19,05 mm

Insert thickness (C1):

6,35 mm

Corner radius (D1):

2,4 mm

Weight of item (D75):

0,025 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Chip breaker manufacturers designation (E9):

HU3

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

6,35 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

7,93 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WPP30G

Coating (H5):

TiCN+Al2O3+(TiN)

Tipped cutting edge code (H6):

Standard designation (J11):

CNMM190624
