Negative rhombic ENMX08T316R-F47 WSP45G

€

16.58

EX VAT

€

20.39

INC VAT

Walter

Negative rhombic ENMX08T316R-F47 WSP45G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

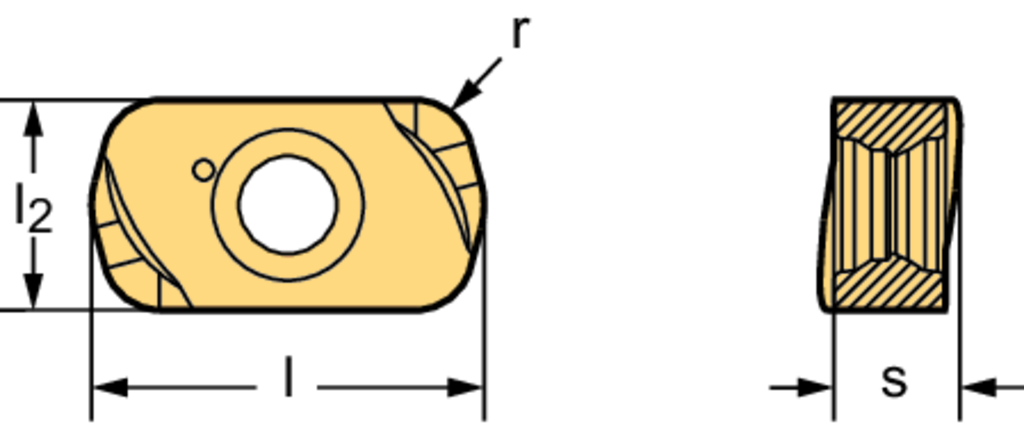

Tool designation (Designation) ENMX08T316R-F47 WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Indexable insert width (l 2) 6 mm

Cutting edge length (l) 11 mm

Insert thickness (s) 3,6 mm

Corner radius (r) 1,6 mm

Insert Shape EN

DESCRIPTION & FEATURES

Negative rhombic ENMX ...-F47 • clearance angle major=0° • WSP45G • Tigertec Gold • Corner radius=1,6mm

Article number (J21):

ENMX08T316R-F47 WSP45G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

75 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

11 mm

Insert width (B2):

6 mm

Insert thickness (C1):

3,596 mm

Corner radius (D1):

1,6 mm

Weight of item (D75):

0,002 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

F47

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

11 mm

Insert thickness total (G4):

3,2 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,8 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WSP45G

Coating (H5):

TiAlN+Al2O3+(ZrN)

Tipped cutting edge code (H6):

Standard designation (J11):

ENMX08T316R
