Negative rhombic LNGX130730R-L55 WKP35S

€

17.78

EX VAT

€

21.87

INC VAT

Walter

Negative rhombic LNGX130730R-L55 WKP35S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

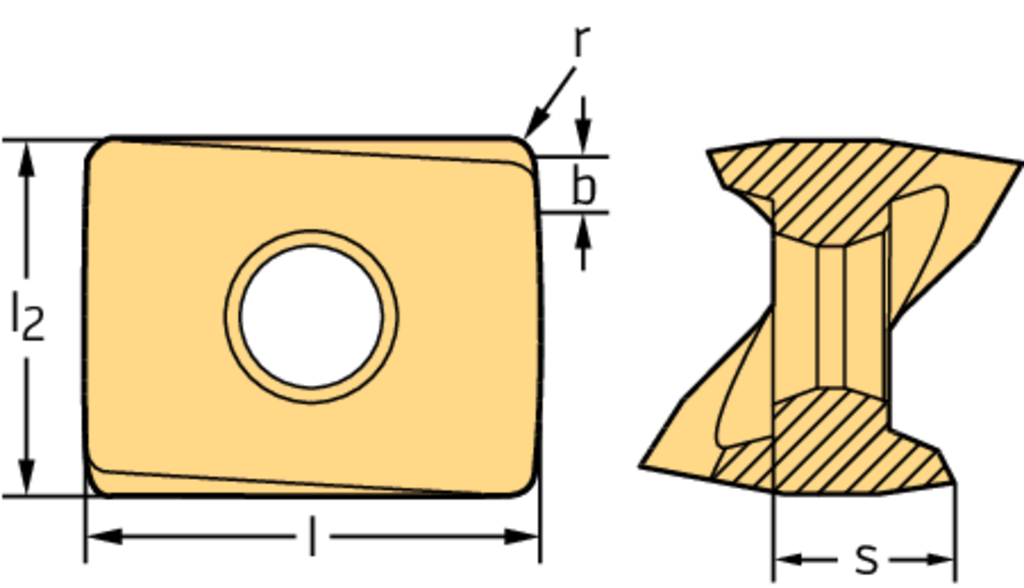

Tool designation (Designation) LNGX130730R-L55 WKP35S

Indexable insert tolerance class (Tolerance class) G

Number of cutting edges (Number of cutting edges) 4

Indexable insert width (l 2) 11 mm

Cutting edge length (l) 13,7 mm

Insert thickness (s) 7,74 mm

Corner radius (r) 3 mm

Wiper cutting edge length (b) 0,7 mm

Insert Shape LN

DESCRIPTION & FEATURES

Negative rhombic LNGX ...-L55 • clearance angle major=0° • WKP35S • Tigertec Silver • Corner radius=3mm • wiper edge length=0,7mm

Article number (J21):

LNGX130730R-L55 WKP35S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

0 °

Cutting edge length (B1):

13,7 mm

Insert width (B2):

11 mm

Insert thickness (C1):

7,74 mm

Corner radius (D1):

3 mm

Wiper edge length (D6):

0,7 mm

Weight of item (D75):

0,011 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

L55

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

13,7 mm

Insert thickness total (G4):

5,3 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP35S

Coating (H5):

TiCN+Al2O3+(TiCN)

Tipped cutting edge code (H6):

Standard designation (J11):

LNGX130730R
