Octagonal face milling cutters M5004-032-T28-02-03

Octagonal face milling cutters M5004-032-T28-02-03

€

357.00

EX VAT

€

439.11

INC VAT

Walter

Octagonal face milling cutters M5004-032-T28-02-03

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

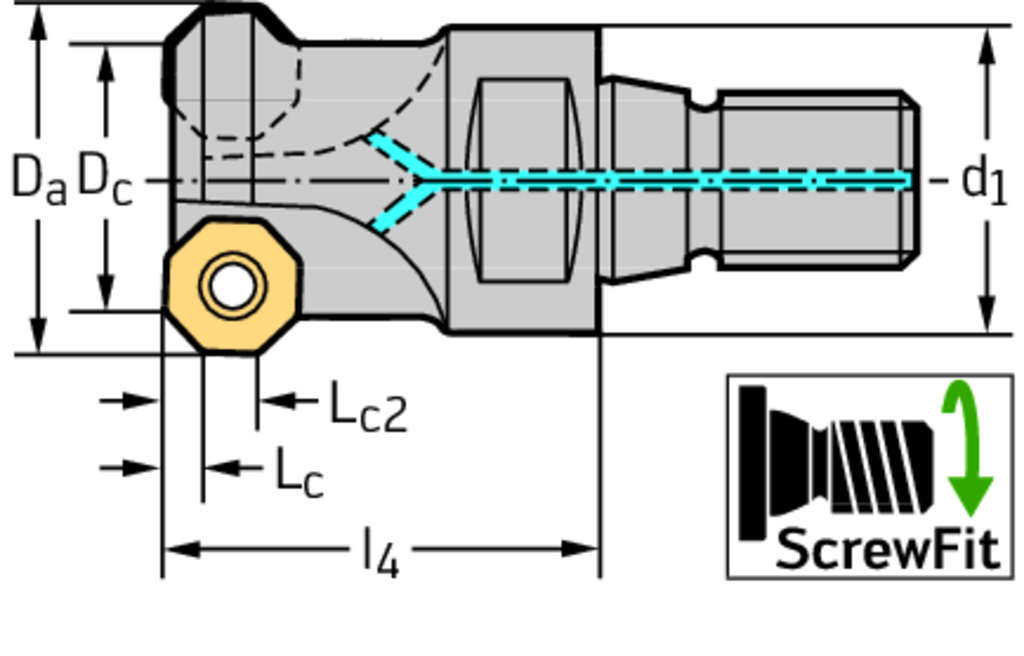

Tool designation (Designation) M5004-032-T28-02-03

Cutting edge diameter (D c) 24 mm

Maximum cutting diameter (D a) 32 mm

Shank diameter (d 1) T28 mm

Functional length (l 4) 40 mm

Cutting edge length (L c) 3 mm

Shank diameter length (L c2) 8 mm

Number of teeth (Z) 2

weight of item 0,2 kg

Number of indexable inserts (No. of indexable inserts) 2

Insert Shape M5

DESCRIPTION & FEATURES

Octagonal face milling cutters M5004 • ScrewFit • κ=43° • metric • OD .. 0504 .. • Dc=24mm • Z=2

Article number (J21):

M5004-032-T28-02-03

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

24 mm

Cutting diameter maximum (A2):

32 mm

Body diameter (A3):

30,72 mm

Depth of cut maximum (B2):

3 mm

Protruding length (B3):

40 mm

Usable length (B4):

40 mm

Overall length (B5):

40 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0280

Connection diameter machine side (C3):

28 mm

Rotational speed maximum (D6):

29400 1/min

Weight of item (D7):

0,164 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

43 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

12,1 °

Plunge depth maximum (E5):

1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, position A (J42):

ODHX0504ZZR-A57

Data chip provision (J7):

Octagonal face milling cutters M5004-032-T28-02-03
