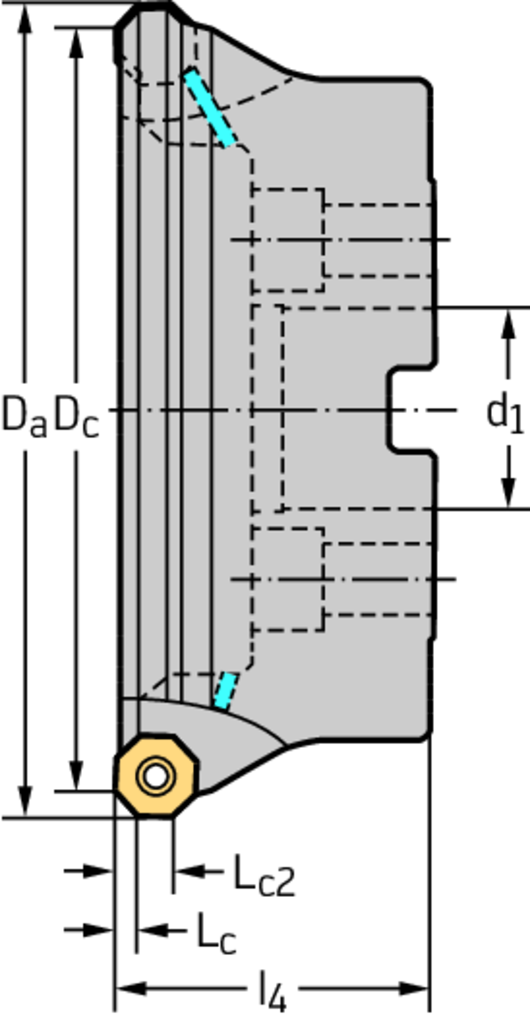

Tool designation (Designation) M5004-160-B40-09-04

Cutting edge diameter (D c) 150 mm

Maximum cutting diameter (D a) 160 mm

Shank diameter (d 1) 40/40 B mm

Functional length (l 4) 63 mm

Cutting edge length (L c) 4 mm

Shank diameter length (L c2) 10 mm

Number of teeth (Z) 9

weight of item 4,2 kg

Number of indexable inserts (No. of indexable inserts) 9

Insert Shape M5

DESCRIPTION & FEATURES

Octagonal face milling cutters M5004 • Parallel bore DIN 138 transverse keyway • κ=43° • metric • OD .. 0605 .. • Dc=150mm • Z=9

Article number (J21):

M5004-160-B40-09-04

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

150 mm

Cutting diameter maximum (A2):

160 mm

Body diameter (A3):

158 mm

Hub diameter (A4):

130 mm

Cutting depth maximum (B2):

4 mm

Overall length (B5):

63 mm

Connection code type machine side (C11):

SPK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0400

Connection diameter machine side (C3):

40 mm

Adjustment property (D4):

Rotational speed maximum (D6):

10900 1/min

Weight of item (D7):

4,233 kg

Tool cutting edge angle (E1):

43 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

1,6 °

Plunge depth maximum (E5):

1 mm

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Standard (J1):

ISO6462

Standard letter to the standard number (J11):

Master insert identification, position A (J42):

ODHX0605ZZR-A57

Data chip provision (J7):
