Octagonal Finishing Face Mill M2026-250-B60-33-03Octagonal Finishing Face Mill M2026-250-B60-33-03
Octagonal Finishing Face Mill M2026-250-B60-33-03 Octagonal Finishing Face Mill M2026-250-B60-33-03

Octagonal Finishing Face Mill M2026-250-B60-33-03

€
4,227.00
EX VAT
€
5,199.21
INC VAT
Walter
Octagonal Finishing Face Mill M2026-250-B60-33-03
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

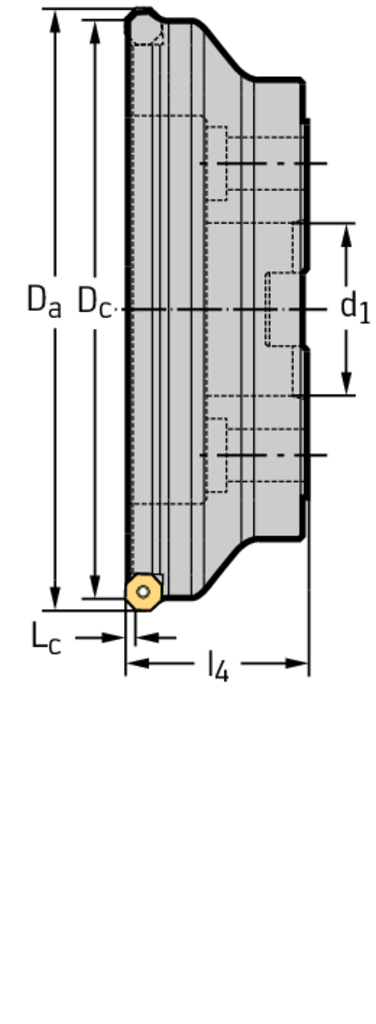

PRODUCT ATTRIBUTES
Tool designation (Designation) M2026-250-B60-33-03
Cutting edge diameter (D c) 250 mm
Maximum cutting diameter (D a) 258,47 mm
Shank diameter (d 1) 60/50 B mm
Functional length (l 4) 63 mm
Cutting edge length (L c) 3 mm
Number of teeth (Z) 33
weight of item 15,2 kg
Number of indexable inserts (No. of indexable inserts) 30
Insert Shape M2
DESCRIPTION & FEATURES
Octagonal Finishing Face Mill M2026 • Parallel bore DIN 138 transverse keyway • κ=42° • metric • ON .. 5404 .. • Dc=250mm • Z=33
Article number (J21):
M2026-250-B60-33-03
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
1
Cutting diameter (A1):
250 mm
Cutting diameter maximum (A2):
258,47 mm
Hub diameter (A4):
130 mm
Cutting depth maximum (B2):
3 mm
Overall length (B5):
63 mm
Connection code type machine side (C11):
SPK
Connection code form at machine side (C12):
02
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
3
Connection size code machine side (C2):
0600
Connection diameter machine side (C3):
60 mm
Adjustment property (D4):
0
Rotational speed maximum (D6):
2800 1/min
Weight of item (D7):
15,22 kg
Tool cutting edge angle (E1):
41,8 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
0 °
Plunge depth maximum (E5):
1,1 mm
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
33
Face effective cutting edge count (F22):
33
Face mounted insert count (G13):
33
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Data chip provision (J7):
0
