Parting and slitting cutters F5055.UBN40.160.Z14.3,0RParting and slitting cutters F5055.UBN40.160.Z14.3,0R
Parting and slitting cutters F5055.UBN40.160.Z14.3,0R Parting and slitting cutters F5055.UBN40.160.Z14.3,0R

Parting and slitting cutters F5055.UBN40.160.Z14.3,0R

€
1,594.00
EX VAT
€
1,960.62
INC VAT
Walter
Parting and slitting cutters F5055.UBN40.160.Z14.3,0R
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

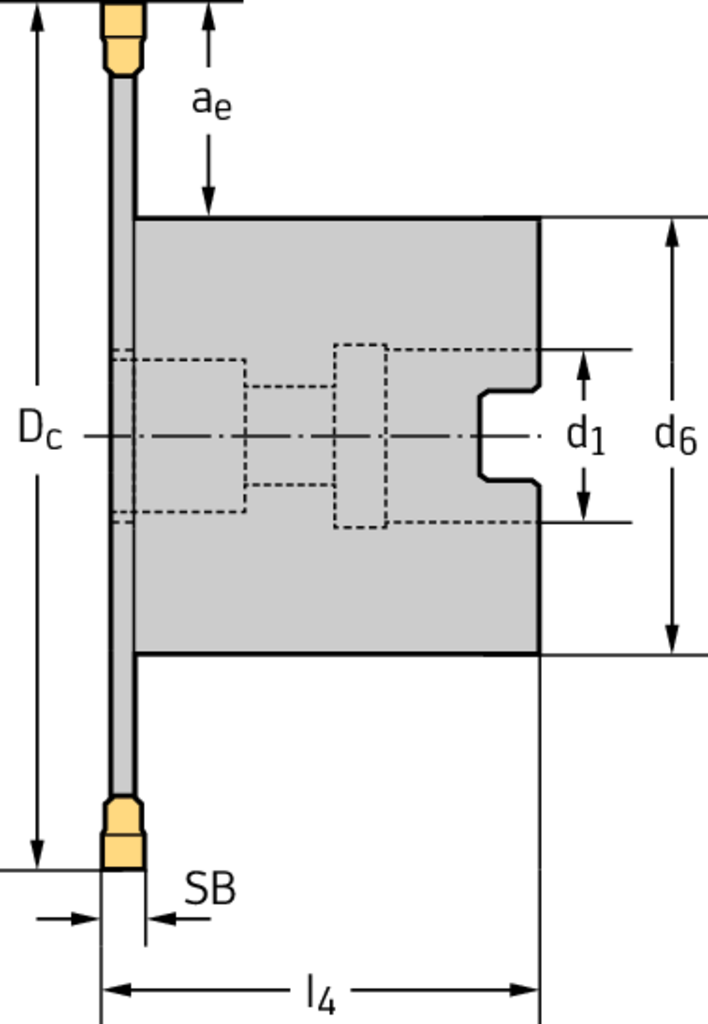

Tool designation (Designation) F5055.UBN40.160.Z14.3,0R
Cutting edge diameter (D c) 6,299 inch
Connection diameter (d 1) 1,5 inch
Hub diameter (d 6) 3,15 inch
Functional length (l 4) 2,48 inch
Cutting width (SB) 0,118 inch
Maximum depth of cut (a e) 1,496 inch
Number of teeth (Z) 14
weight of item 2,2 lbs
Number of indexable inserts (No. of indexable inserts) 14
Insert Shape F5
DESCRIPTION & FEATURES
Parting and slitting cutters F5055 • Parallel bore DIN 138 transverse keyway • inch • Dc=160mm • SB=3mm
Article number (J21):
F5055.UBN40.160.Z14.3,0R
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
5
Cutting diameter (A1):
160 mm
Hub diameter (A4):
80 mm
Cutting width minimum (B11):
3 mm
Cutting width maximum (B12):
3 mm
Cutting depth maximum (B2):
38 mm
Overall length (B5):
63 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
12
Connection code unit base machine side (C14):
2
Connection code style machine side (C15):
0
Connection size code machine side (C2):
1500
Connection diameter machine side (C3):
38,1 mm
Adjustment property (D4):
0
Rotational speed maximum (D6):
2000 1/min
Weight of item (D7):
2,179 kg
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
14
Face effective cutting edge count (F22):
14
Face mounted insert count (G13):
14
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Data chip provision (J7):
0
