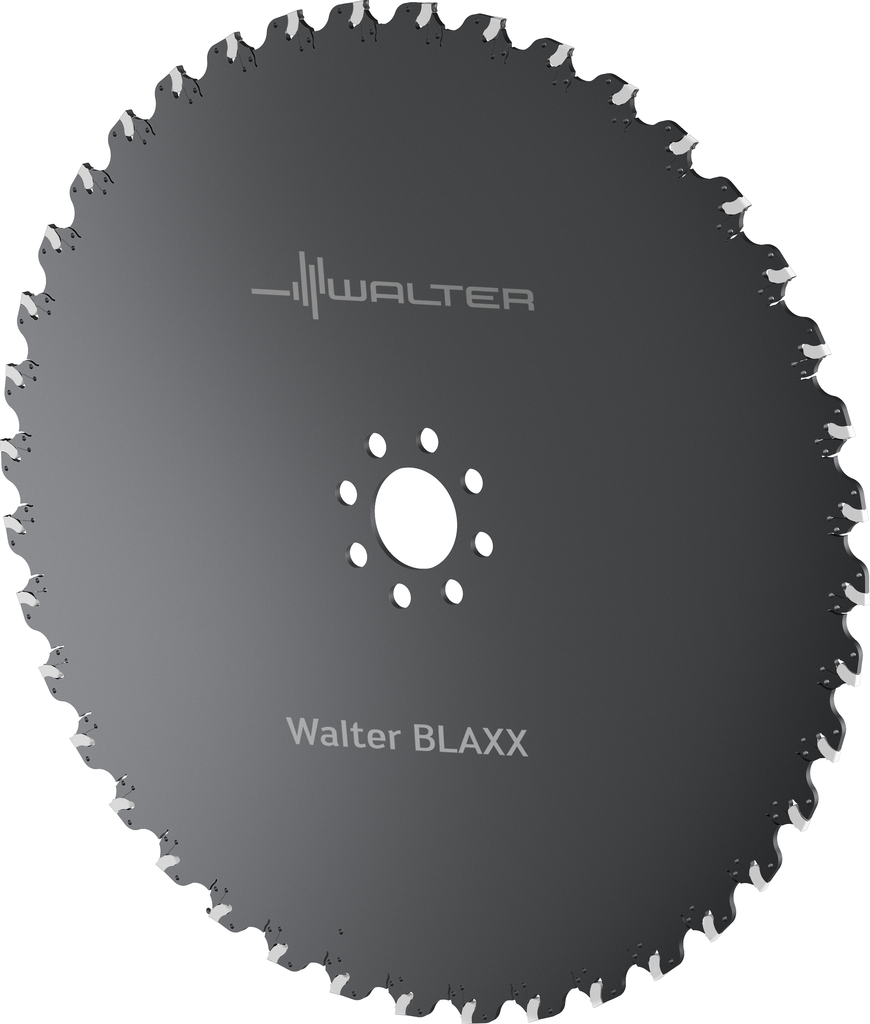

Parting and slitting cutters F5055.B16.080.Z07.1,5Parting and slitting cutters F5055.B16.080.Z07.1,5
Parting and slitting cutters F5055.B16.080.Z07.1,5 Parting and slitting cutters F5055.B16.080.Z07.1,5

Parting and slitting cutters F5055.B16.080.Z07.1,5

€
706.00
EX VAT
€
868.38
INC VAT
Walter
Parting and slitting cutters F5055.B16.080.Z07.1,5
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES
Tool designation (Designation) F5055.B16.080.Z07.1,5
Cutting edge diameter (D c) 80 mm
connection diameter (d 1) 16 mm
Cutting width (SB) 1,5 mm
Maximum depth of cut (a e) 19 mm
Hub thickness (l 10) 1,2 mm
Number of teeth (Z) 7
weight of item 0,06 kg
Number of indexable inserts (No. of indexable inserts) 7
Insert Shape F5
DESCRIPTION & FEATURES
Parting and slitting cutters F5055 • Parallel bore DIN 138 longitudinal keyway • metric • Dc=80mm • SB=1,5mm
Article number (J21):
F5055.B16.080.Z07.1,5
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
9
Cutting diameter (A1):
80 mm
Cutting width minimum (B11):
1,5 mm
Cutting width maximum (B12):
1,5 mm
Cutting depth maximum (B2):
19 mm
Overall length (B5):
1,5 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
0
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
16 mm
Mill tool type ISO (D11):
D
Rotational speed maximum (D6):
4000 1/min
Weight of item (D7):
0,063 kg
Tool cutting edge angle (E1):
90 °
Cutting direction (F1):
Neutral
Peripheral effective cutting edge count (F21):
7
Peripheral mounted insert count (G15):
7
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Master insert identification, position B (J52):
P9SX-6431509
Data chip provision (J7):
0
