Parting and slitting cutters F5055.B16.080.Z06.4,0Parting and slitting cutters F5055.B16.080.Z06.4,0
Parting and slitting cutters F5055.B16.080.Z06.4,0 Parting and slitting cutters F5055.B16.080.Z06.4,0

Parting and slitting cutters F5055.B16.080.Z06.4,0

€
649.00
EX VAT
€
798.27
INC VAT
Walter
Parting and slitting cutters F5055.B16.080.Z06.4,0
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

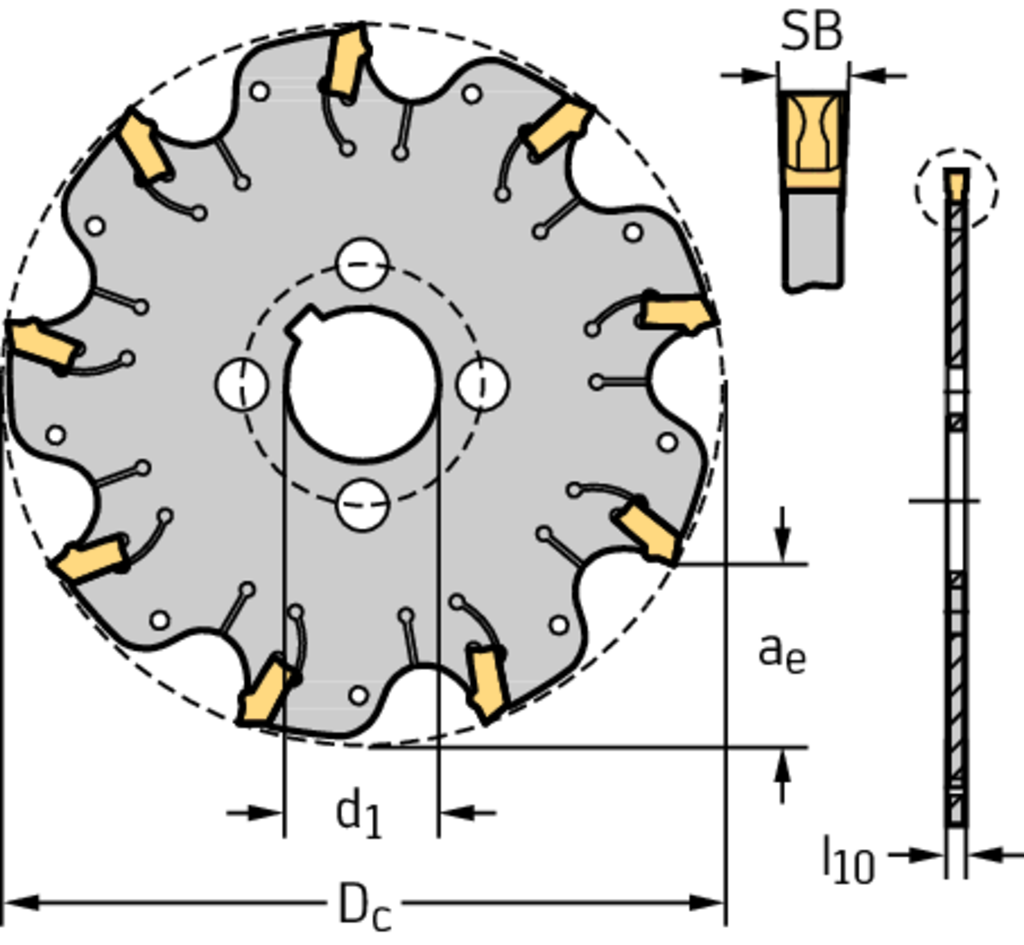

Tool designation (Designation) F5055.B16.080.Z06.4,
Cutting edge diameter (D c) 80 mm
connection diameter (d 1) 16 mm
Cutting width (SB) 4 mm
Maximum depth of cut (a e) 19 mm
Hub thickness (l 10) 3,4 mm
Number of teeth (Z) 6
weight of item 0,12 kg
Number of indexable inserts (No. of indexable inserts) 6
Insert Shape F5
DESCRIPTION & FEATURES
Parting and slitting cutters F5055 • Parallel bore DIN 138 longitudinal keyway • metric • Dc=80mm • SB=4mm
Article number (J21):
F5055.B16.080.Z06.4,0
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
9
Cutting diameter (A1):
80 mm
Cutting width minimum (B11):
4 mm
Cutting width maximum (B12):
4 mm
Cutting depth maximum (B2):
19 mm
Overall length (B5):
4 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
0
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
16 mm
Mill tool type ISO (D11):
D
Rotational speed maximum (D6):
4000 1/min
Weight of item (D7):
0,117 kg
Tool cutting edge angle (E1):
90 °
Cutting direction (F1):
Neutral
Peripheral effective cutting edge count (F21):
6
Peripheral mounted insert count (G15):
6
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Master insert identification, position B (J52):
P9SX-6358931
Data chip provision (J7):
0
