PCD face milling cutters MP060-080B16P WDN20PCD face milling cutters MP060-080B16P WDN20
PCD face milling cutters MP060-080B16P WDN20 PCD face milling cutters MP060-080B16P WDN20

PCD face milling cutters MP060-080B16P WDN20

€
2,618.00
EX VAT
€
3,220.14
INC VAT
Walter
PCD face milling cutters MP060-080B16P WDN20
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

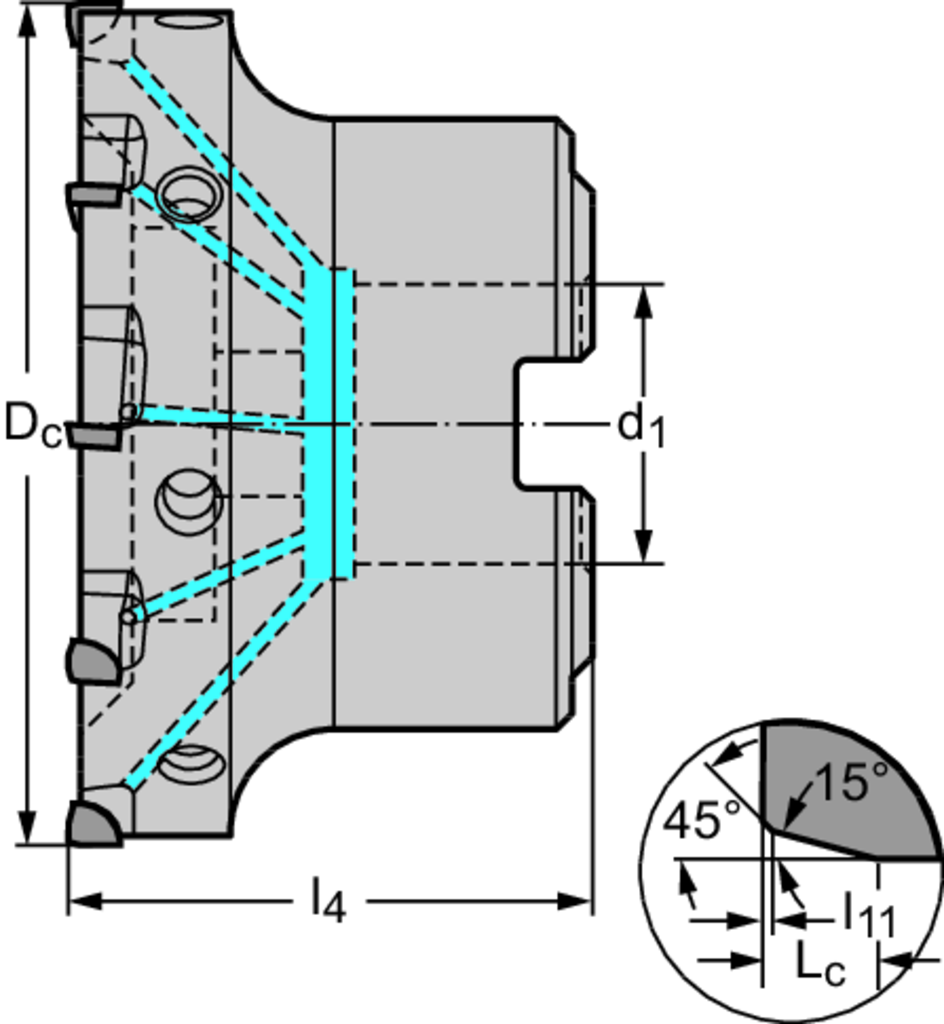

Tool designation (Designation) MP060-080B16P WDN20
Cutting edge diameter (D c) 80 mm
Corner chamfer width (l 11) 0,1 mm
Cutting edge length (L c) 1,1 mm
Maximum projection length (l 4) 50 mm
connection diameter (d 1) 27 mm
Number of teeth (Z) 16
weight of item 1 kg
Insert Shape MP
DESCRIPTION & FEATURES
PCD face milling cutters MP060 • Parallel bore DIN 138 transverse keyway • metric • flute helix angle 4° • WDN20 • Dc=80,6mm • Z=16
Article number (J21):
MP060-080B16P WDN20
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-83
Tool style code (BLD):
2
Cutting diameter (A1):
80,6 mm
Body diameter (A3):
79,6 mm
Cutting width minimum (B11):
5 mm
Overall height (B5):
50 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
12
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
0
Connection size code machine side (C2):
0270
Rotational speed maximum (D6):
20000 1/min
Weight of item (D7):
0,951 kg
Rake angle radial (E2):
0 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
16
Face effective cutting edge count (F22):
16
Flute helix hand (F3):
R
Flute helix angle (F4):
4 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Grade manufacturer's designation (H3):
WDN20
Body material code (H4):
S
Coating (H5):
PKD
Standard (J1):
ISO6462
Standard letter to the standard number (J11):
A
Data chip provision (J7):
0
