PCD – grooving and copy turning GX30-5F800N40FS-M1 WDN10

PCD – grooving and copy turning GX30-5F800N40FS-M1 WDN10

€

237.00

EX VAT

€

291.51

INC VAT

Walter

PCD – grooving and copy turning GX30-5F800N40FS-M1 WDN10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

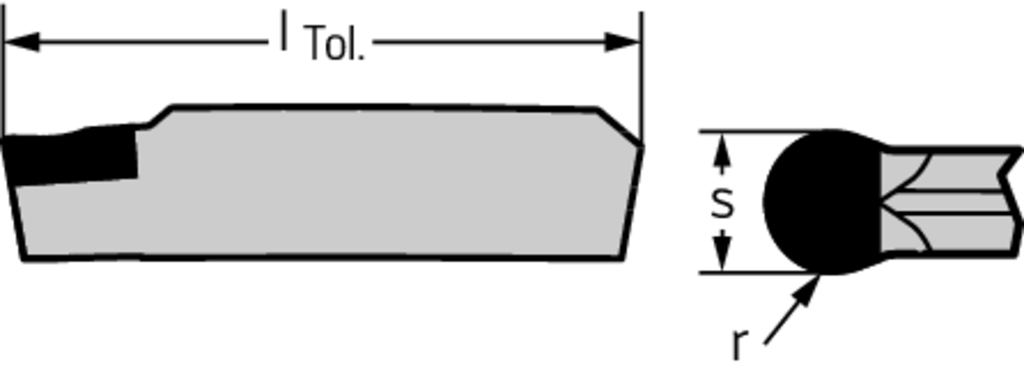

Tool designation (Designation) GX30-5F800N40FS-M1 WDN10

Insert width (s) 8 mm

Corner radius (r) 4 mm

Cutting edge length (l) 30 mm

Feed per revolution (f) 0,05 - 0,6 mm

Depth of cut (a p) 0,1 - 4 mm

Tolerance cutting width (S Tol) ±0,02 mm

Length tolerance (l Tol) ±0,02 mm

Insert Shape GX

DESCRIPTION & FEATURES

PCD – grooving and copy turning GX ...-M1 • neutral • WDN10 • s=8mm • r=4mm

Article number (J21):

GX30-5F800N40FS-M1 WDN10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-77

Tool style code (BLD):

Profile form (A1):

Cutting width (A2):

8 mm

Weight of item (D75):

0,01 kg

Clearance angle major (E1):

10 °

Chip breaker face count (E6):

Insert hand (E7):

Chip breaker manufacturers designation (E9):

FS-M1

Flute count (F2):

Insert length (G1):

30 mm

Insert mounting style code (G5):

Grade manufacturer's designation (H3):

WDN10

Coating (H5):

PCD

Tipped cutting edge code (H6):
