PCD – Positive rhombic 55° DCGW DCGW070204FS-1 WDN10

PCD – Positive rhombic 55° DCGW DCGW070204FS-1 WDN10

€

60.60

EX VAT

€

74.54

INC VAT

Walter

PCD – Positive rhombic 55° DCGW DCGW070204FS-1 WDN10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

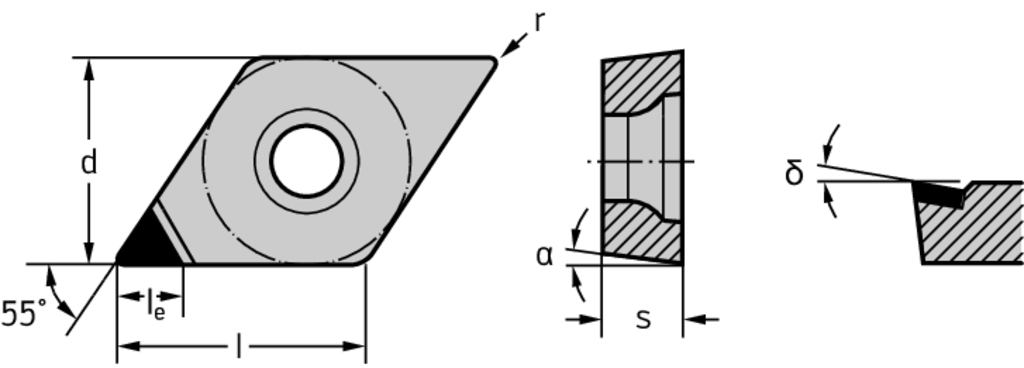

Tool designation (Designation) DCGW070204FS-1 WDN10

Number of cutting edges (Number of cutting edges) 1

Limited cutting edge length (l e) 3,5 mm

Corner radius (r) 0,4 mm

Clearance angle major (α) 7 Deg

Delta (δ) 0 Deg

Feed per revolution (f) 0,03 - 0,25 mm

Depth of cut (a p) 0,1 - 3 mm

Insert Shape DC

DESCRIPTION & FEATURES

PCD – Positive rhombic 55° DCGW ...-FS-1 • WDN10 • r=0,4mm

Article number (J21):

DCGW070204FS-1 WDN10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

55 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

7,752 mm

Inscribed circle diameter (B3):

6,35 mm

Insert thickness (C1):

2,381 mm

Corner radius (D1):

0,4 mm

Insert rake angle (D7):

0 °

Weight of item (D75):

0,001 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Cutting edge effective length (E7):

3,5 mm

Chip breaker manufacturers designation (E9):

W-FS

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

2,381 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,8 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WDN10

Coating (H5):

PCD

Tipped cutting edge code (H6):
