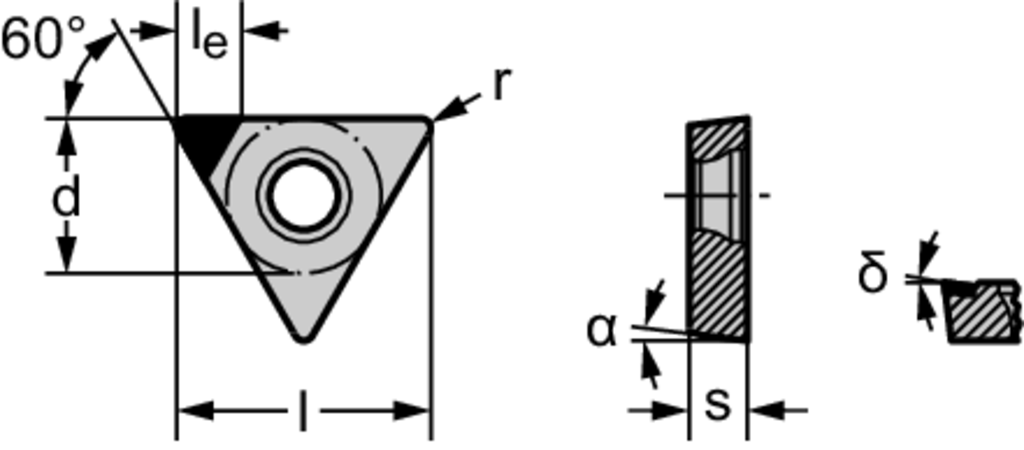

PRODUCT ATTRIBUTES

Tool designation (Designation) TCGW16T308FS-1 WDN10

Number of cutting edges (Number of cutting edges) 1

Limited cutting edge length (l e) 4 mm

Corner radius (r) 0,8 mm

Clearance angle major (α) 7 Deg

Delta (δ) 0 Deg

Feed per revolution (f) 0,03 - 0,38 mm

Depth of cut (a p) 0,1 - 3,5 mm

Insert Shape TC

DESCRIPTION & FEATURES

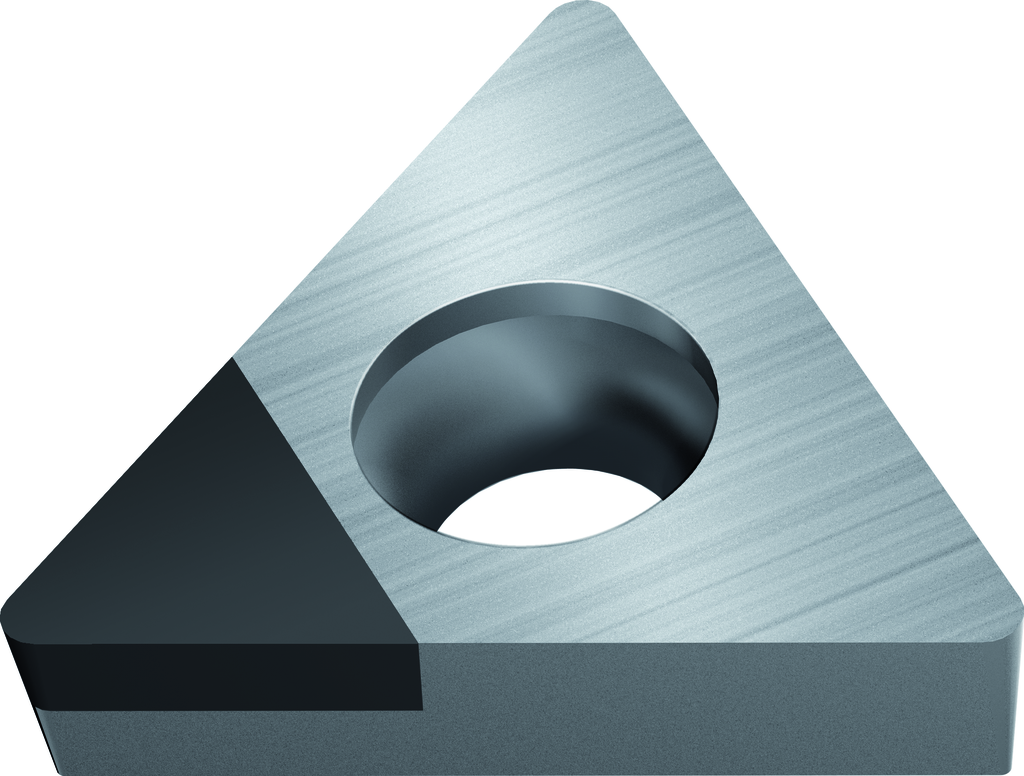

PCD – Positive triangular 60° TCGW ...-FS-1 • WDN10 • r=0,8mm

Article number (J21):

TCGW16T308FS-1 WDN10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

60 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

16,498 mm

Inscribed circle diameter (B3):

9,525 mm

Insert thickness (C1):

3,969 mm

Corner radius (D1):

0,8 mm

Insert rake angle (D7):

0 °

Weight of item (D75):

0,005 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Cutting edge effective length (E7):

4 mm

Chip breaker manufacturers designation (E9):

W-FS

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

3,969 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WDN10

Coating (H5):

PCD

Tipped cutting edge code (H6):
