PCD Wiper inserts XOEX XOEX12T3AZR-F-A88 WDN20

PCD Wiper inserts XOEX XOEX12T3AZR-F-A88 WDN20

€

97.80

EX VAT

€

120.29

INC VAT

Walter

PCD Wiper inserts XOEX XOEX12T3AZR-F-A88 WDN20

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

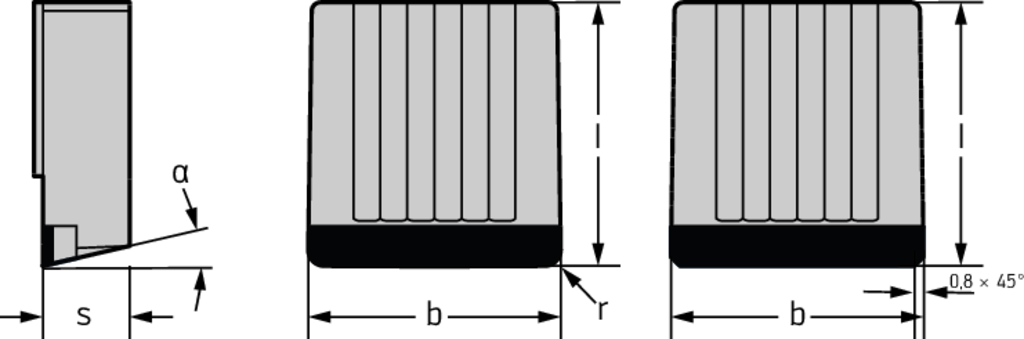

Tool designation (Designation) XOEX12T3AZR-F-A88 WDN20

Indexable insert tolerance class (Tolerance class) E

Number of cutting edges (Number of cutting edges) 1

Cutting edge length (l) 12,16 mm

Insert thickness (s) 4 mm

Clearance angle major (α) 13 Deg

Wiper cutting edge length (b) 11,8 mm

Insert Shape XO

DESCRIPTION & FEATURES

PCD Wiper inserts XOEX ...-A88 • clearance angle major=13° • WDN20 • Corner radius=0,8mm • wiper edge length=11,8mm

Article number (J21):

XOEX12T3AZR-F-A88 WDN20

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

13 °

Cutting edge length (B1):

12,16 mm

Inscribed circle diameter (B3):

11,8 mm

Insert thickness (C1):

4 mm

Corner radius (D1):

0,8 mm

Wiper edge length (D6):

11,8 mm

Weight of item (D75):

0,008 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A88

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert length (G3):

12,16 mm

Insert thickness total (G4):

4 mm

Insert mounting style code (G5):

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WDN20

Coating (H5):

PKD

Tipped cutting edge code (H6):
