Positive rhombic 35° VCGX0902ACFR WXP30

€

15.48

EX VAT

€

19.04

INC VAT

Walter

Positive rhombic 35° VCGX0902ACFR WXP30

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

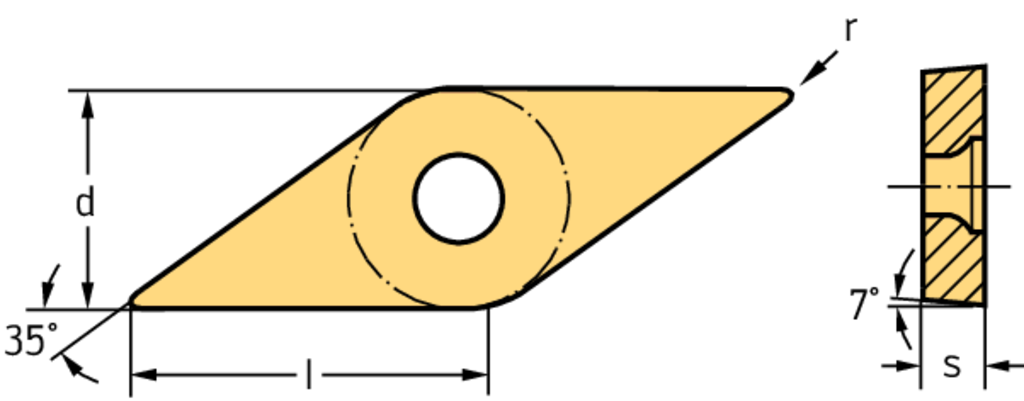

Tool designation (Designation) VCGX0902ACFR WXP30

Number of cutting edges (Number of cutting edges) 2

Cutting edge length (l) 9 mm

Insert thickness (s) 2,5 mm

Corner radius (r) 0,2 mm

Diameter of inscribed circle (d) 5,556 mm

Insert Shape VC

DESCRIPTION & FEATURES

Positive rhombic 35° VCGX ...- • WXP30 • ACFR • r=0,2mm • clearance angle major=7°

Article number (J21):

VCGX0902ACFR WXP30

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

35 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

9 mm

Inscribed circle diameter (B3):

5,556 mm

Insert thickness (C1):

2,5 mm

Corner radius (D1):

0,2 mm

Weight of item (D75):

0,001 kg

Chip breaker manufacturers designation (E9):

ACFR

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

2,5 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,9 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WXP30

Coating (H5):

TiAlN/TiSiN

Tipped cutting edge code (H6):
