Positive rhombic BCMT090304R-F55 WKP35GPositive rhombic BCMT090304R-F55 WKP35G
Positive rhombic BCMT090304R-F55 WKP35G Positive rhombic BCMT090304R-F55 WKP35G

Positive rhombic BCMT090304R-F55 WKP35G

€
16.32
EX VAT
€
20.07
INC VAT
Walter
Positive rhombic BCMT090304R-F55 WKP35G
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

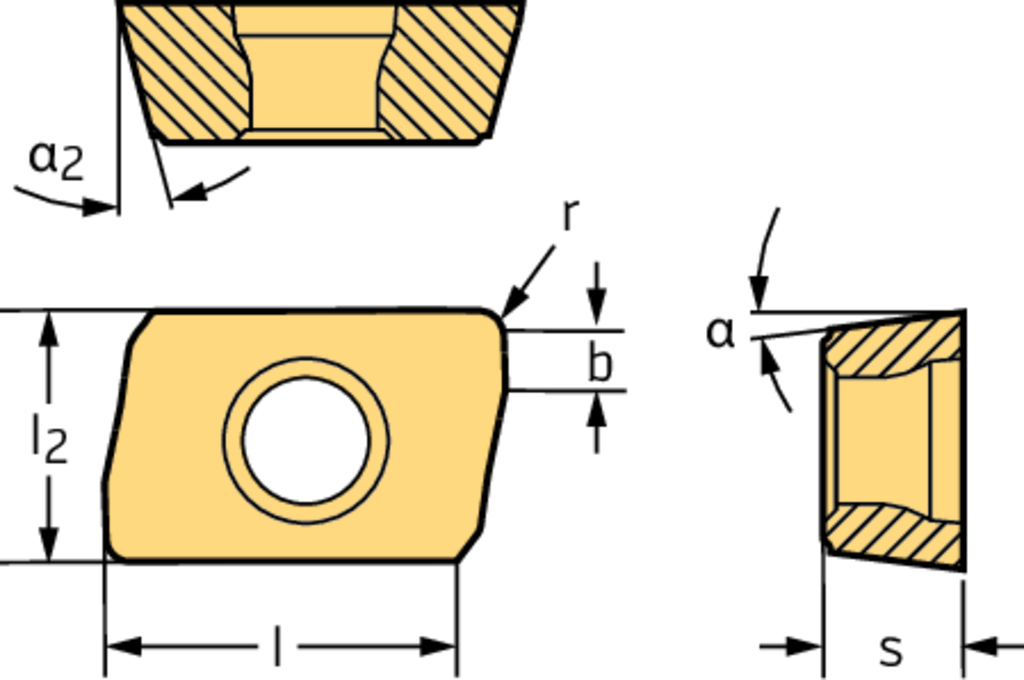

Tool designation (Designation) BCMT090304R-F55 WKP35G
Indexable insert tolerance class (Tolerance class) M
Number of cutting edges (Number of cutting edges) 2
Indexable insert width (l 2) 6,3 mm
Cutting edge length (l) 10,3 mm
Insert thickness (s) 3,21 mm
Clearance angle major (α) 7 Deg
Minor clearance angle (α 2) 15 Deg
Corner radius (r) 0,4 mm
Wiper cutting edge length (b) 1,2 mm
Insert Shape BC
DESCRIPTION & FEATURES

Positive rhombic BCMT ...-F55 • clearance angle major=7° • WKP35G • Tigertec Gold • Corner radius=0,4mm • wiper edge length=1,2mm

Article number (J21):
BCMT090304R-F55 WKP35G
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-76
Tool style code (BLD):
5
Insert included angle (A1):
82 °
Clearance angle major (A2):
7 °
Clearance angle minor (A3):
15 °
Cutting edge length (B1):
10,3 mm
Insert width (B2):
6,3 mm
Insert thickness (C1):
3,21 mm
Corner radius (D1):
0,4 mm
Wiper edge length (D6):
1,2 mm
Weight of item (D75):
0,002 kg
Cutting edge condition code (E41):
S
Chip breaker manufacturers designation (E9):
F55
Insert hand (F1):
R
Insert index count (F2):
2
Tolerance class insert (G1):
M
Insert thickness total (G4):
2,46 mm
Insert mounting style code (G5):
3
Fixing hole diameter (G6):
2,8 mm
Coolant supply property (H2):
0
Grade manufacturer's designation (H3):
WKP35G
Coating (H5):
TiAlN+TiN
Tipped cutting edge code (H6):
S
Standard designation (J11):
BCMT090304R
