Positive rhombic ZDGT15A404R-K85 WMG40

€

15.58

EX VAT

€

19.16

INC VAT

Walter

Positive rhombic ZDGT15A404R-K85 WMG40

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

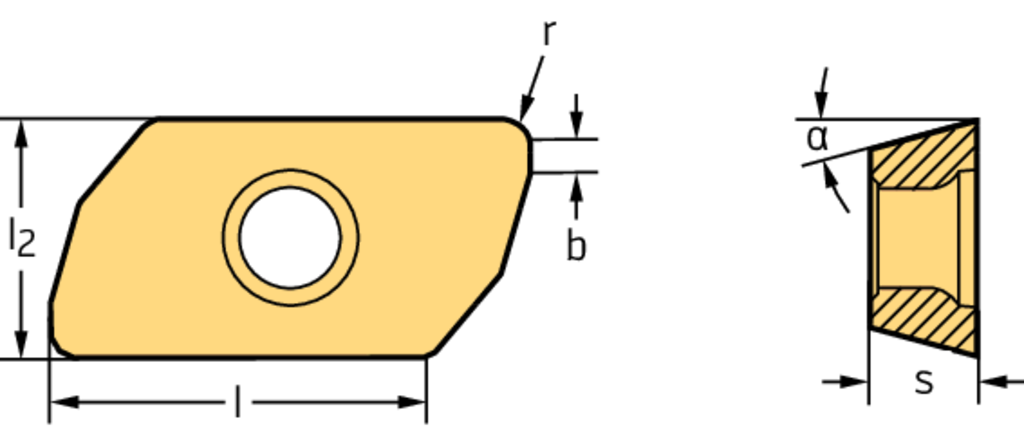

Tool designation (Designation) ZDGT15A404R-K85 WMG40

Indexable insert tolerance class (Tolerance class) G

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 10,5 mm

Cutting edge length (l) 16,2 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,4 mm

Wiper cutting edge length (b) 1,2 mm

Insert Shape ZD

DESCRIPTION & FEATURES

Positive rhombic ZDGT ...-K85 • clearance angle major=15° • WMG40 • Corner radius=0,4mm • wiper edge length=1,2mm

Article number (J21):

ZDGT15A404R-K85 WMG40

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

74 °

Clearance angle major (A2):

15 °

Cutting edge length (B1):

16,2 mm

Insert width (B2):

10,5 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

0,4 mm

Wiper edge length (D6):

1,2 mm

Weight of item (D75):

0,007 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

K85

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WMG40

Coating (H5):

unbeschichtet

Tipped cutting edge code (H6):

Standard designation (J11):

ZDGT15A404R
