Positive rhombic ACMT060202R-G55 WKP35G

€

13.50

EX VAT

€

16.61

INC VAT

Walter

Positive rhombic ACMT060202R-G55 WKP35G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

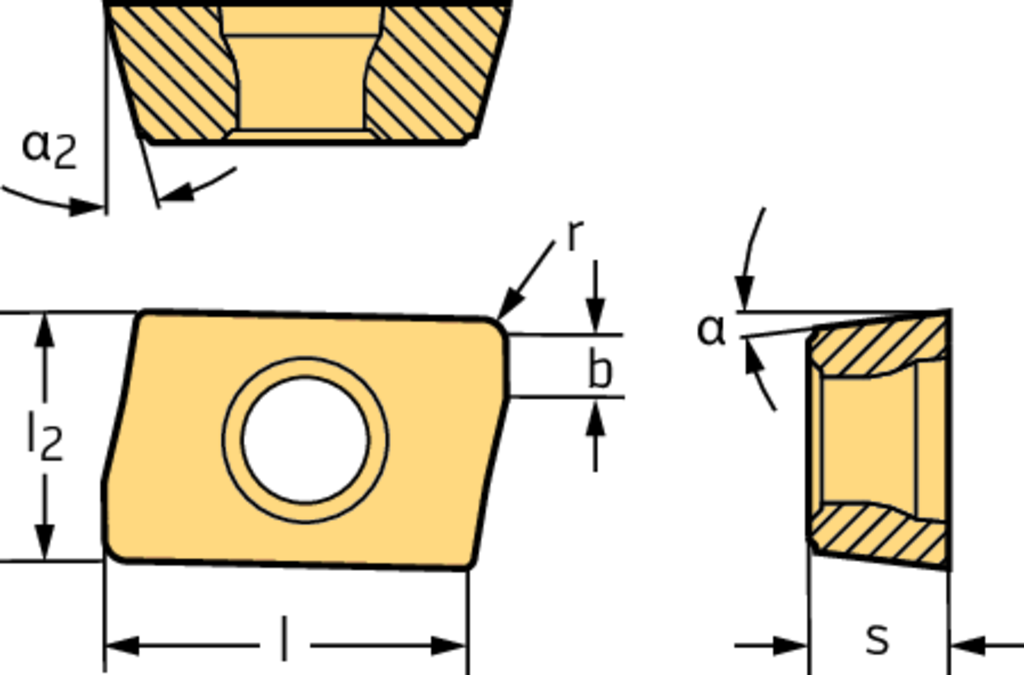

PRODUCT ATTRIBUTES

Tool designation (Designation) ACMT060202R-G55 WKP35G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 2

Indexable insert width (l 2) 4,4 mm

Cutting edge length (l) 6,7 mm

Insert thickness (s) 2,38 mm

Clearance angle major (α) 7 Deg

Minor clearance angle (α 2) 15 Deg

Corner radius (r) 0,2 mm

Wiper cutting edge length (b) 1 mm

Insert Shape AC

DESCRIPTION & FEATURES

Positive rhombic ACMT ...-G55 • clearance angle major=7° • WKP35G • Tigertec Gold • Corner radius=0,2mm • wiper edge length=1mm

Article number (J21):

ACMT060202R-G55 WKP35G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

85 °

Clearance angle major (A2):

7 °

Clearance angle minor (A3):

15 °

Cutting edge length (B1):

6,7 mm

Insert width (B2):

4,4 mm

Inscribed circle diameter (B3):

4,4 mm

Insert thickness (C1):

2,38 mm

Corner radius (D1):

0,2 mm

Wiper edge length (D6):

1 mm

Weight of item (D75):

0,001 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

G55

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

2,38 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

2,15 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKP35G

Coating (H5):

TiAlN+TiN

Tipped cutting edge code (H6):

Standard designation (J11):

ACMT060202R
