Positive square SPHW1204EDR-A88 WCD10

€

112.00

EX VAT

€

137.76

INC VAT

Walter

Positive square SPHW1204EDR-A88 WCD10

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

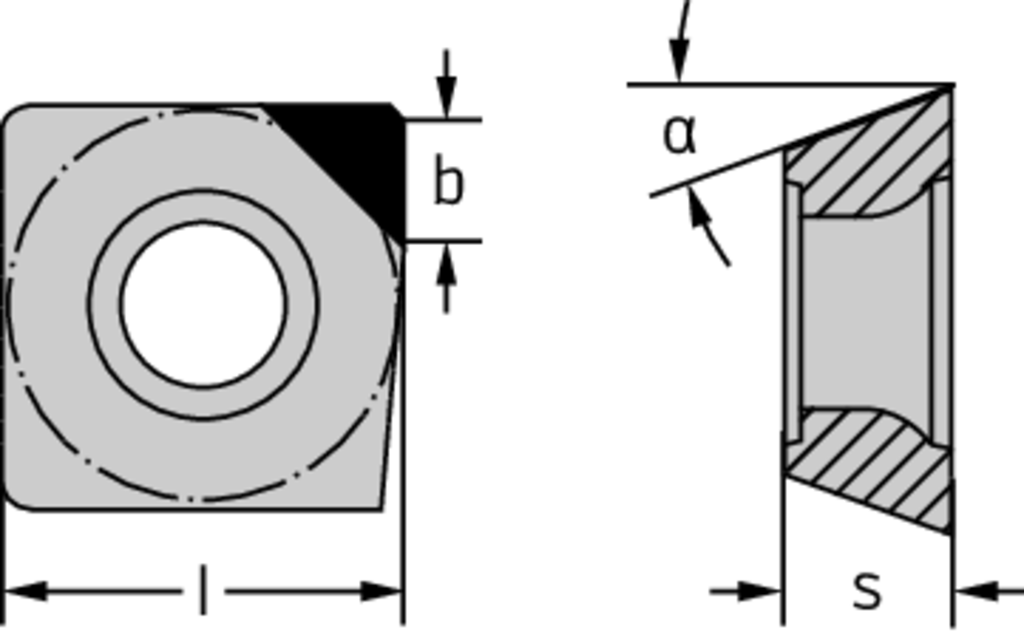

Tool designation (Designation) SPHW1204EDR-A88 WCD10

Indexable insert tolerance class (Tolerance class) H

Number of cutting edges (Number of cutting edges) 1

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 11 Deg

Wiper cutting edge length (b) 1,5 mm

Insert Shape SP

DESCRIPTION & FEATURES

Positive square SPHW ...-A88 • clearance angle major=11° • WCD10 • wiper edge length=1,5mm

Article number (J21):

SPHW1204EDR-A88 WCD10

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

11 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner chamfer width (D2):

0,5 mm

Wiper edge length (D6):

1,5 mm

Weight of item (D75):

0,013 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A88

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

5,5 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WCD10

Coating (H5):

PKD

Tipped cutting edge code (H6):

Standard designation (J11):

SPHW1204EDR
