Positive square SDMT1204ZDR-D57 WSP45G

€

11.26

EX VAT

€

13.85

INC VAT

Walter

Positive square SDMT1204ZDR-D57 WSP45G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

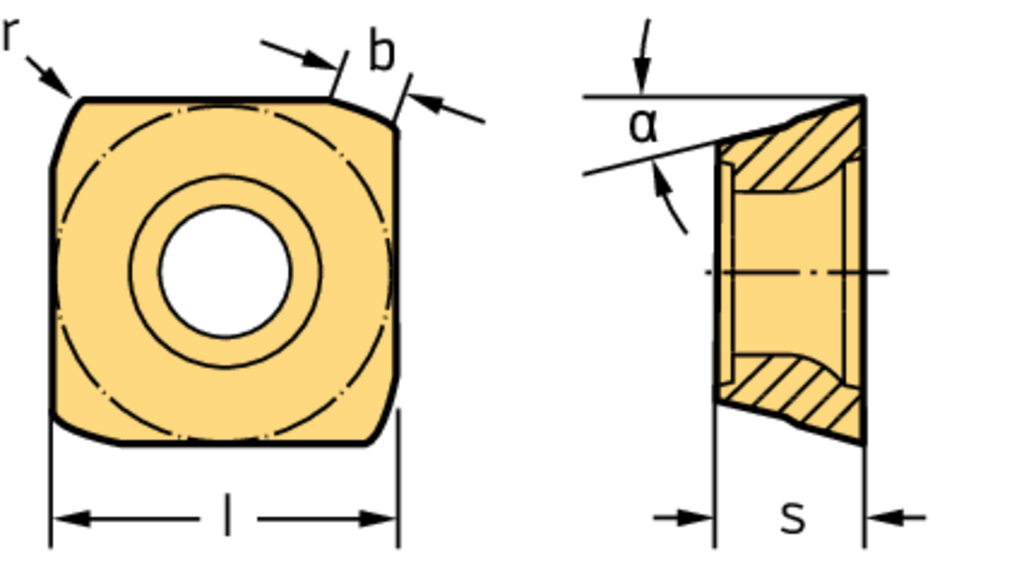

Tool designation (Designation) SDMT1204ZDR-D57 WSP45G

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 12,7 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,8 mm

Wiper cutting edge length (b) 1,8 mm

Insert Shape SD

DESCRIPTION & FEATURES

Positive square SDMT ...-D57 • clearance angle major=15° • WSP45G • Tigertec Gold • Corner radius=0,8mm • wiper edge length=1,8mm

Article number (J21):

SDMT1204ZDR-D57 WSP45G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

15 °

Cutting edge length (B1):

12,7 mm

Inscribed circle diameter (B3):

12,7 mm

Insert thickness (C1):

4,76 mm

Corner radius (D1):

0,8 mm

Wiper edge length (D6):

1,795 mm

Weight of item (D75):

0,007 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

D57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WSP45G

Coating (H5):

TiAlN+Al2O3+(ZrN)

Tipped cutting edge code (H6):

Standard designation (J11):

SDMT1204ZDR
