Positive square SDMT09T308-D57 WKK25S

€

8.76

EX VAT

€

10.77

INC VAT

Walter

Positive square SDMT09T308-D57 WKK25S

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

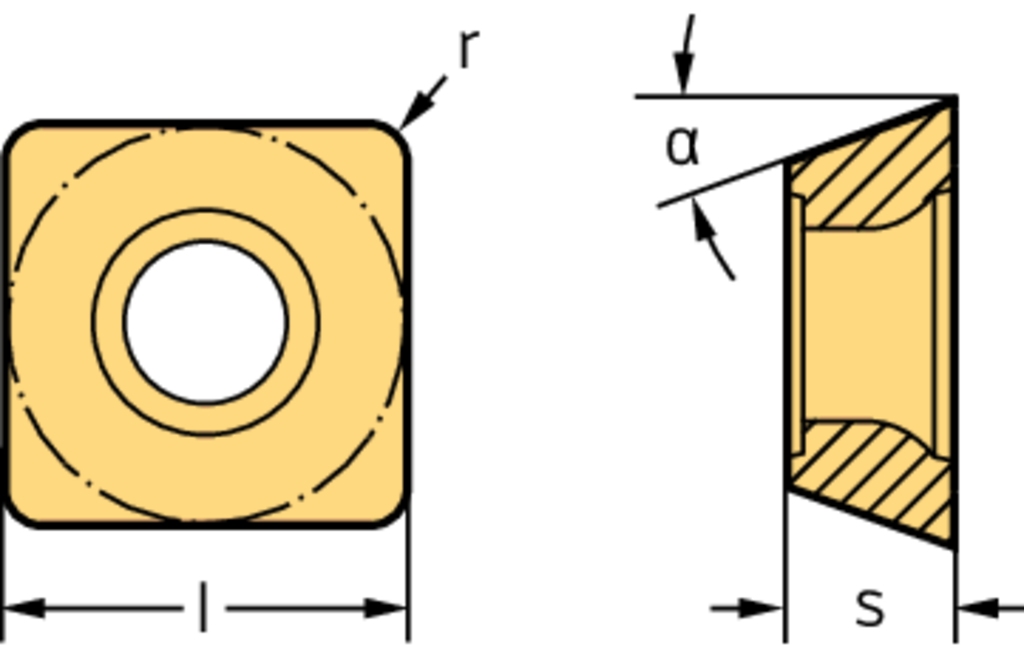

PRODUCT ATTRIBUTES

Tool designation (Designation) SDMT09T308-D57 WKK25S

Indexable insert tolerance class (Tolerance class) M

Number of cutting edges (Number of cutting edges) 4

Cutting edge length (l) 9,52 mm

Insert thickness (s) 3,97 mm

Clearance angle major (α) 15 Deg

Corner radius (r) 0,8 mm

DESCRIPTION & FEATURES

Positive square SDMT ...-D57 • clearance angle major=15° • WKK25S • Tigertec Silver • Corner radius=0,8mm

Article number (J21):

SDMT09T308-D57 WKK25S

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

90 °

Clearance angle major (A2):

15 °

Cutting edge length (B1):

9,52 mm

Inscribed circle diameter (B3):

9,52 mm

Insert thickness (C1):

3,97 mm

Corner radius (D1):

0,8 mm

Weight of item (D75):

0,003 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

D57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

3,97 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

3,9 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WKK25S

Coating (H5):

TiAlN+Al2O3+(Al)

Tipped cutting edge code (H6):

Standard designation (J11):

SDMT09T308
