Positive triangular TPJW1604PPN WAK15

€

9.87

EX VAT

€

12.14

INC VAT

Walter

Positive triangular TPJW1604PPN WAK15

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

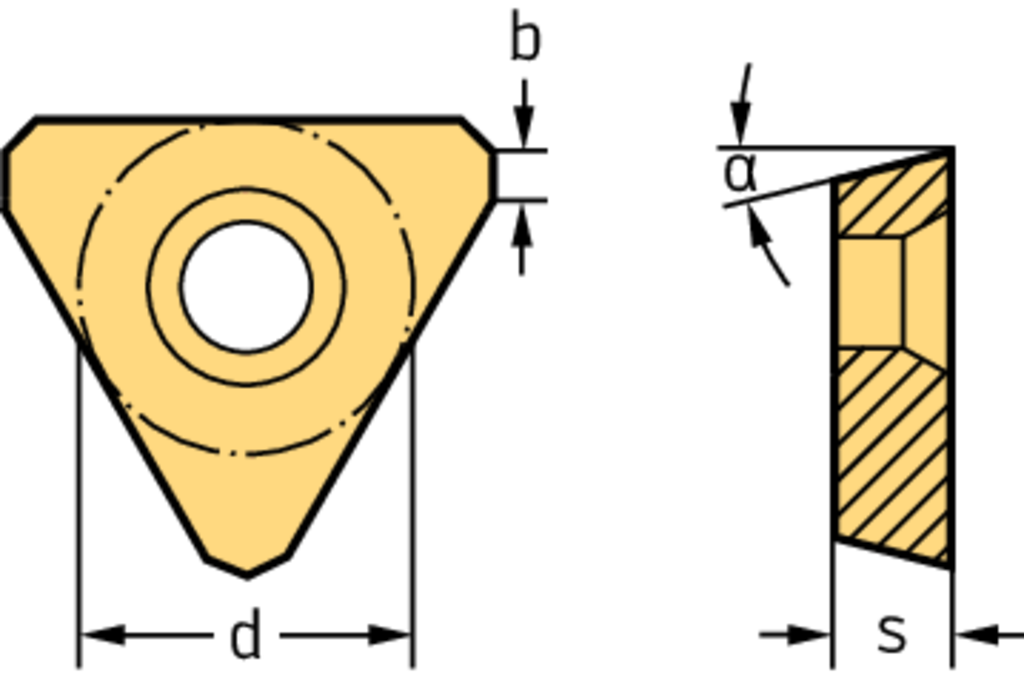

Tool designation (Designation) TPJW1604PPN WAK15

Indexable insert tolerance class (Tolerance class) J

Number of cutting edges (Number of cutting edges) 3

Diameter of inscribed circle (d) 9,52 mm

Insert thickness (s) 4,76 mm

Clearance angle major (α) 11 Deg

Wiper cutting edge length (b) 1,2 mm

Insert Shape TP

DESCRIPTION & FEATURES

Positive triangular TPJW ...-A57 • clearance angle major=11° • WAK15 • Tigertec • wiper edge length=1,2mm

Article number (J21):

TPJW1604PPN WAK15

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

60 °

Clearance angle major (A2):

11 °

Inscribed circle diameter (B3):

9,52 mm

Insert thickness (C1):

4,76 mm

Corner chamfer width (D2):

1,2 mm

Wiper edge length (D6):

1,2 mm

Weight of item (D75):

0,007 kg

Cutting edge condition code (E41):

Chip breaker manufacturers designation (E9):

A57

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

4,76 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WAK15

Coating (H5):

TiCN+Al2O3+(TiN)

Tipped cutting edge code (H6):

Standard designation (J11):

TPJW1604PPN
