Positive Trigon 80° WCMT06T302-FP4 WPP20G

Positive Trigon 80° WCMT06T302-FP4 WPP20G

€

7.73

EX VAT

€

9.51

INC VAT

Walter

Positive Trigon 80° WCMT06T302-FP4 WPP20G

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

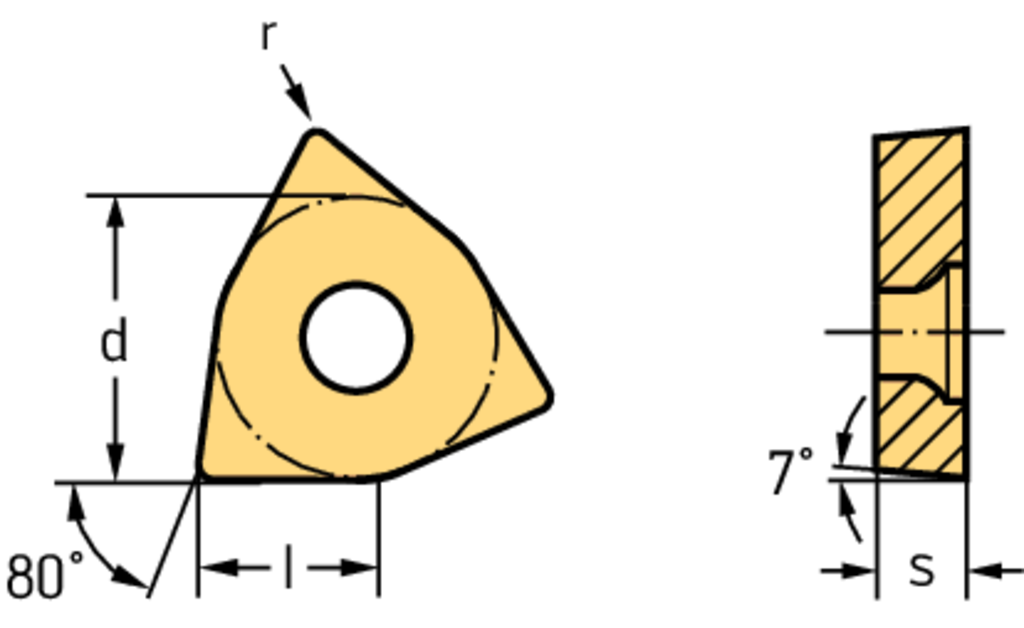

Tool designation (Designation) WCMT06T302-FP4 WPP20G

Cutting edge length (l) 6,52 mm

Corner radius (r) 0,2 mm

Feed per revolution (f) 0,04 - 0,12 mm

Depth of cut (a p) 0,1 - 1 mm

Insert Shape WC

DESCRIPTION & FEATURES

Positive Trigon 80° WCMT ...-FP4 • Tigertec Gold • WPP20G • r=0,2mm

Article number (J21):

WCMT06T302-FP4 WPP20G

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-76

Tool style code (BLD):

Insert included angle (A1):

80 °

Clearance angle major (A2):

7 °

Cutting edge length (B1):

6,516 mm

Inscribed circle diameter (B3):

9,525 mm

Insert thickness (C1):

3,969 mm

Corner radius (D1):

0,2 mm

Weight of item (D75):

0,005 kg

Cutting edge condition code (E41):

Chip breaker face count (E6):

Chip breaker manufacturers designation (E9):

FP4

Insert hand (F1):

Insert index count (F2):

Tolerance class insert (G1):

Insert thickness total (G4):

3,969 mm

Insert mounting style code (G5):

Fixing hole diameter (G6):

4,4 mm

Coolant supply property (H2):

Grade manufacturer's designation (H3):

WPP20G

Coating (H5):

TiCN+Al2O3+(TiN)

Tipped cutting edge code (H6):

Standard designation (J11):

WCMT06T302
