Precision boring tool B4030.T45.55-70.Z1.CC06

Precision boring tool B4030.T45.55-70.Z1.CC06

€

1,574.00

EX VAT

€

1,936.02

INC VAT

Walter

Precision boring tool B4030.T45.55-70.Z1.CC06

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

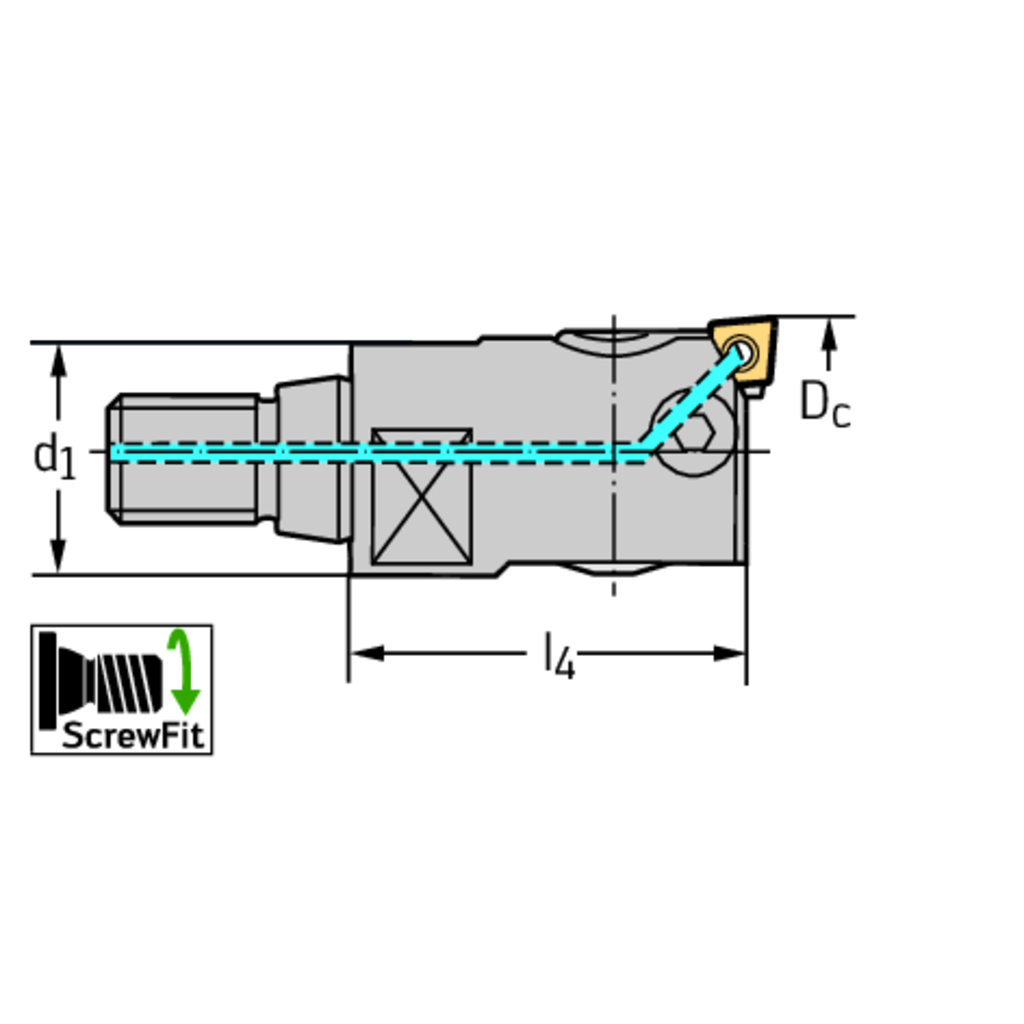

Tool designation (Designation) B4030.T45.55-70.Z1.CC06

Cutting edge diameter (D c) 55 - 70 mm

connection diameter (d 1) 45 mm

Connection size code (d 1) T45

functional length (l 4) 80 mm

weight of item 1 kg

Insert Shape B4

DESCRIPTION & FEATURES

Precision boring tool B4030 • ScrewFit • metric • Dc=55-70mm

Article number (J21):

B4030.T45.55-70.Z1.CC06

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-84

Tool style code (BLD):

Cutting diameter minimum (A11):

55 mm

Cutting diameter maximum (A12):

70 mm

Protruding length (B3):

80 mm

Overall length (B5):

115 mm

Functional length (B71):

80 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0450

Connection diameter machine side (C3):

45 mm

Rotational speed maximum (D6):

9000 1/min

Weight of item (D7):

1,041 kg

Tool cutting edge angle (E1):

95 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
