Precision boring tool B4030.C6.06-07.Z1.WC02

Precision boring tool B4030.C6.06-07.Z1.WC02

€

1,938.00

EX VAT

€

2,383.74

INC VAT

Walter

Precision boring tool B4030.C6.06-07.Z1.WC02

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

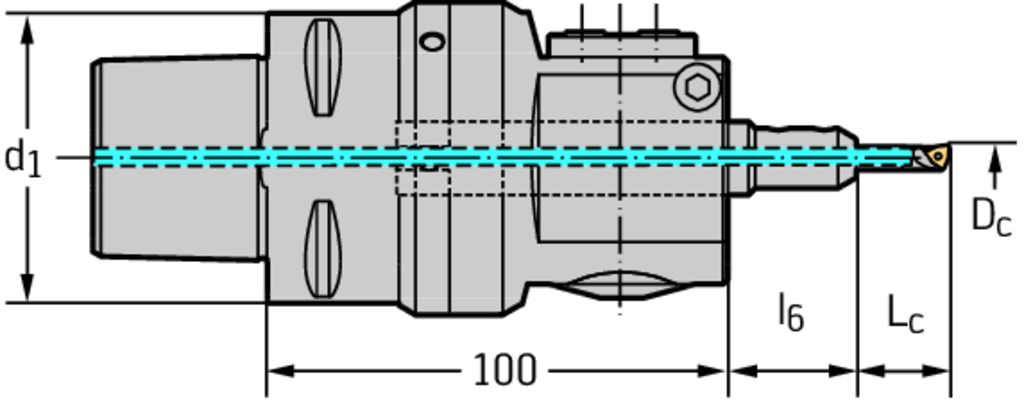

Tool designation (Designation) B4030.C6.06-07.Z1.WC02

Cutting edge diameter (D c) 5.8 - 7.5 mm

Connection diameter (d 1) 63 mm

Connection size code (d 1) C6

Cutting edge length (L c) 20 - 60 mm

Minimum length (l 6 min) 28 mm

Maximum length (l 6 max) 60 mm

weight of item 2,2 kg

Insert Shape B4

DESCRIPTION & FEATURES

Precision boring tool B4030 • Walter Capto^TM ISO 26623 • metric • Dc=6-8mm

Article number (J21):

B4030.C6.06-07.Z1.WC02

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-84

Tool style code (BLD):

Cutting diameter minimum (A11):

5,8 mm

Cutting diameter maximum (A12):

7,5 mm

Protruding length (B3):

220 mm

Overall length (B5):

258 mm

Functional length (B71):

148 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0630

Connection diameter machine side (C3):

63 mm

Shank length (C4):

38 mm

Rotational speed maximum (D6):

14000 1/min

Weight of item (D7):

2,204 kg

Tool cutting edge angle (E1):

93 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
