Precision boring tool B3230.T22.26-33.Z1.TC06

Precision boring tool B3230.T22.26-33.Z1.TC06

€

1,288.00

EX VAT

€

1,584.24

INC VAT

Walter

Precision boring tool B3230.T22.26-33.Z1.TC06

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

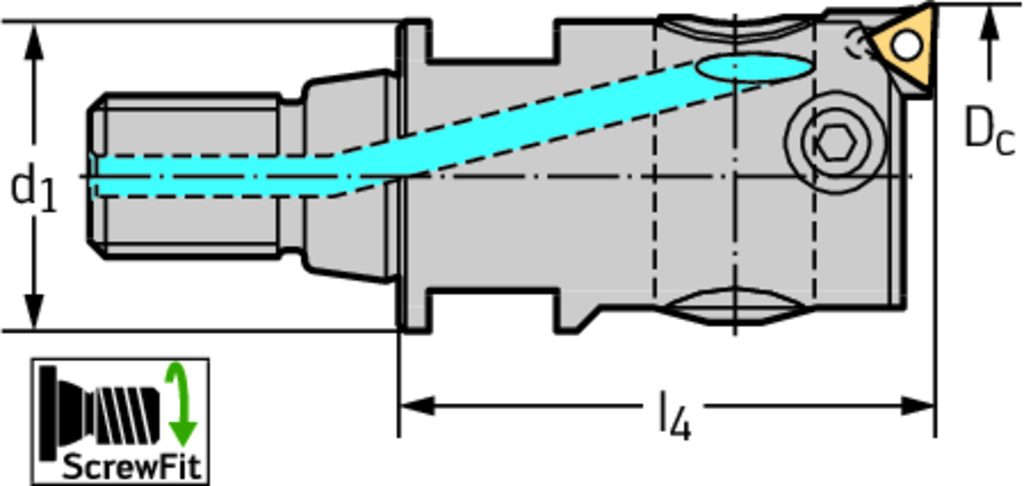

Tool designation (Designation) B3230.T22.26-33.Z1.TC06

Cutting edge diameter (D c) 26 - 33 mm

connection diameter (d 1) 22 mm

Connection size code (d 1) T22

functional length (l 4) 40 mm

weight of item 0,1 kg

Insert Shape B3

DESCRIPTION & FEATURES

Precision boring tool B3230 • ScrewFit • metric • Dc=26-33mm

Article number (J21):

B3230.T22.26-33.Z1.TC06

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-84

Tool style code (BLD):

Cutting diameter minimum (A11):

26 mm

Cutting diameter maximum (A12):

33 mm

Protruding length (B3):

40 mm

Overall length (B5):

63 mm

Functional length (B71):

40 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0220

Connection diameter machine side (C3):

22 mm

Rotational speed maximum (D6):

10000 1/min

Weight of item (D7):

0,136 kg

Tool cutting edge angle (E1):

93 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification (J42):

TCMT 06 T1 00 RE=0

Data chip provision (J7):
