Precision XT fine boring tool B5115-023-029-N2-TC06

Precision XT fine boring tool B5115-023-029-N2-TC06

€

1,157.00

EX VAT

€

1,423.11

INC VAT

Walter

Precision XT fine boring tool B5115-023-029-N2-TC06

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

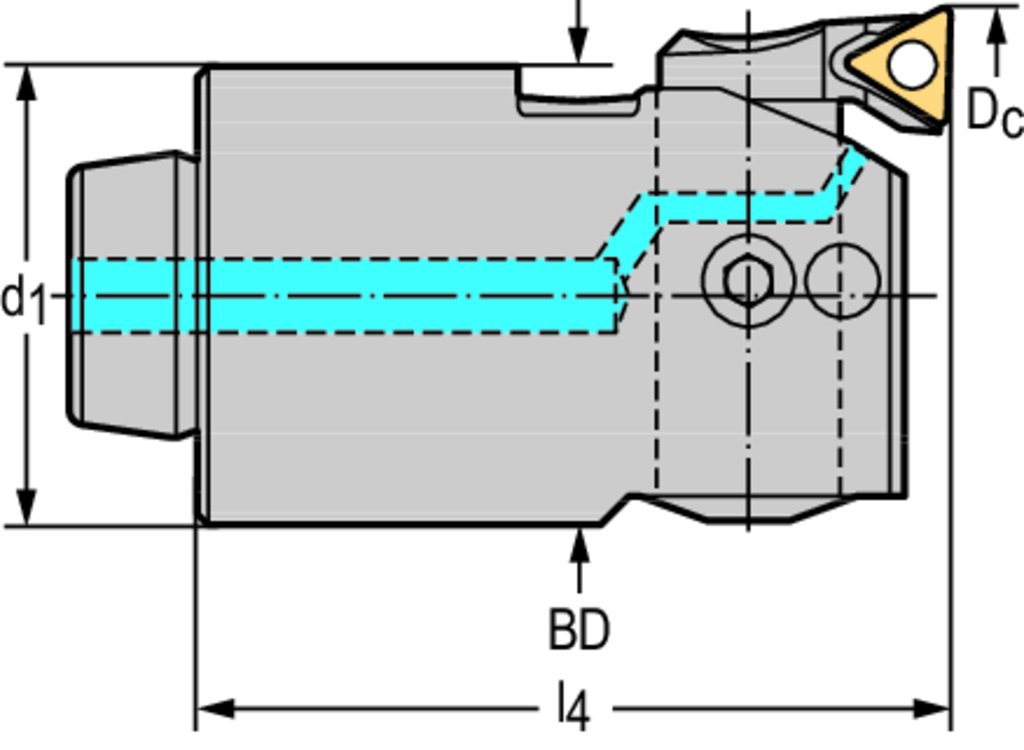

Tool designation (Designation) B5115-023-029-N2-TC06

Cutting edge diameter (D c) 23 - 29 mm

connection diameter (d 1) 25 mm

Connection size code (d 1) NCT 25

functional length (l 4) 91 mm

weight of item 0,2 kg

Insert Shape B5

DESCRIPTION & FEATURES

Precision XT fine boring tool B5115 • Modular NCT adaptor • metric • Dc=23-29mm

Article number (J21):

B5115-023-029-N2-TC06

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-84

Tool style code (BLD):

Cutting diameter minimum (A11):

23 mm

Cutting diameter maximum (A12):

29 mm

Protruding length (B3):

91 mm

Overall length (B5):

98 mm

Functional length (B71):

91 mm

Connection code type machine side (C11):

NCT

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0250

Connection diameter machine side (C3):

25 mm

Shank length (C4):

7 mm

Rotational speed maximum (D6):

16607 1/min

Weight of item (D7):

0,23 kg

Adjustment increment axial (D93):

0,001

Adjustment increment radial (D95):

0,001

Tool cutting edge angle (E1):

92 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification (J42):

TCMT 06 T1 00 RE=0

Data chip provision (J7):
