Precision XT fine boring tool B5110-0027-0047-T22-CS

Precision XT fine boring tool B5110-0027-0047-T22-CS

€

967.00

EX VAT

€

1,189.41

INC VAT

Walter

Precision XT fine boring tool B5110-0027-0047-T22-CS

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

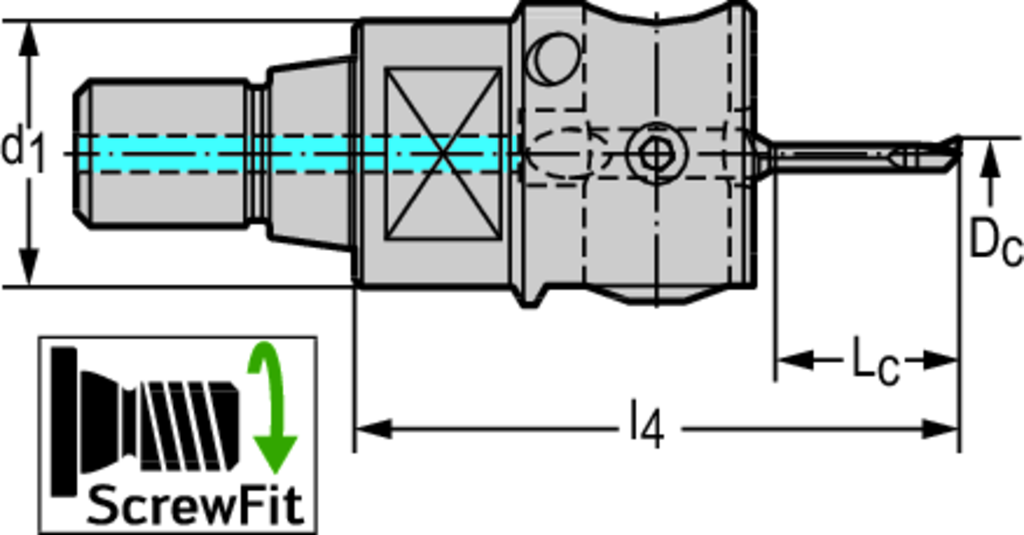

PRODUCT ATTRIBUTES

Tool designation (Designation) B5110-0027-0047-T22-CS

Cutting edge diameter (D c) 2.7 - 4.7 mm

Connection diameter (d 1) 22 mm

Cutting edge length (L c) 15 mm

weight of item 0,1 kg

Boring bar B5110-0027-0047-T22-CS

Insert Shape B5

DESCRIPTION & FEATURES

Precision XT fine boring tool B5110 • ScrewFit • metric • Dc=3-5mm

Article number (J21):

B5110-0027-0047-T22-CS

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-84

Tool style code (BLD):

Cutting diameter minimum (A11):

2,7 mm

Cutting diameter maximum (A12):

4,7 mm

Protruding length (B3):

50 mm

Overall length (B5):

73 mm

Functional length (B71):

50 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0220

Connection diameter machine side (C3):

22 mm

Rotational speed maximum (D6):

28000 1/min

Weight of item (D7):

0,13 kg

Adjustment increment axial (D93):

0,001

Adjustment increment radial (D95):

0,001

Tool cutting edge angle (E1):

98 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
