Precision XT fine boring tool B5110-017-020-N4-TC09Precision XT fine boring tool B5110-017-020-N4-TC09
Precision XT fine boring tool B5110-017-020-N4-TC09 Precision XT fine boring tool B5110-017-020-N4-TC09

Precision XT fine boring tool B5110-017-020-N4-TC09

€
1,178.00
EX VAT
€
1,448.94
INC VAT
Walter
Precision XT fine boring tool B5110-017-020-N4-TC09
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

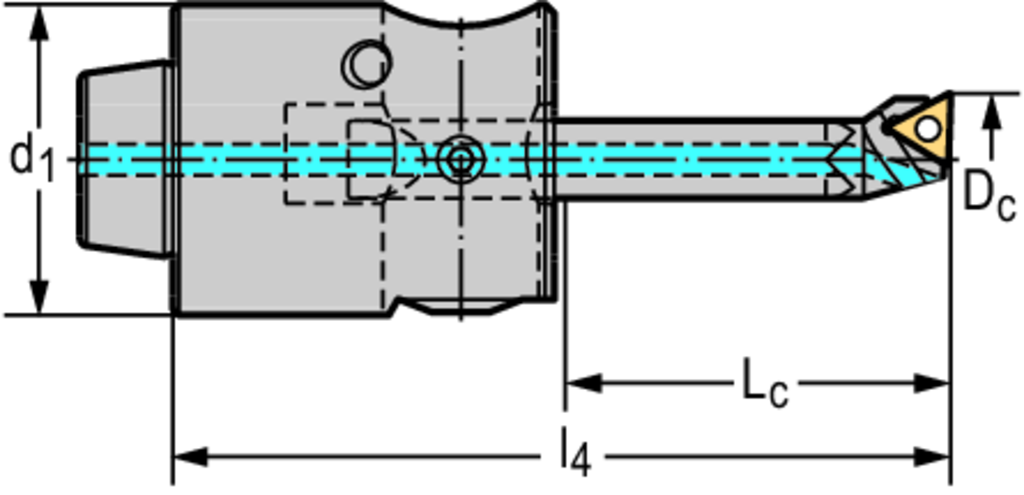

Tool designation (Designation) B5110-017-020-N4-TC09
Cutting edge diameter (D c) 17 - 20 mm
Connection diameter (d 1) 40 mm
Cutting edge length (L c) 50 mm
weight of item 0,5 kg
Boring bar B5110-017-020-N4-TC09
Insert Shape B5
DESCRIPTION & FEATURES
Precision XT fine boring tool B5110 • Modular NCT adaptor • metric • Dc=17-20mm
Article number (J21):
B5110-017-020-N4-TC09
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-84
Tool style code (BLD):
9
Cutting diameter minimum (A11):
17 mm
Cutting diameter maximum (A12):
20 mm
Protruding length (B3):
100 mm
Overall length (B5):
112 mm
Functional length (B71):
100 mm
Connection code type machine side (C11):
NCT
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0400
Connection diameter machine side (C3):
40 mm
Shank length (C4):
12 mm
Rotational speed maximum (D6):
10000 1/min
Weight of item (D7):
0,54 kg
Adjustment increment axial (D93):
0,001
Adjustment increment radial (D95):
0,001
Tool cutting edge angle (E1):
92 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
1
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Master insert identification (J42):
TCMT 09 02 02
Data chip provision (J7):
0
