Profile milling cutters M5460-012-A12-02-06Profile milling cutters M5460-012-A12-02-06
Profile milling cutters M5460-012-A12-02-06 Profile milling cutters M5460-012-A12-02-06

Profile milling cutters M5460-012-A12-02-06

€
200.00
EX VAT
€
246.00
INC VAT
Walter
Profile milling cutters M5460-012-A12-02-06
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

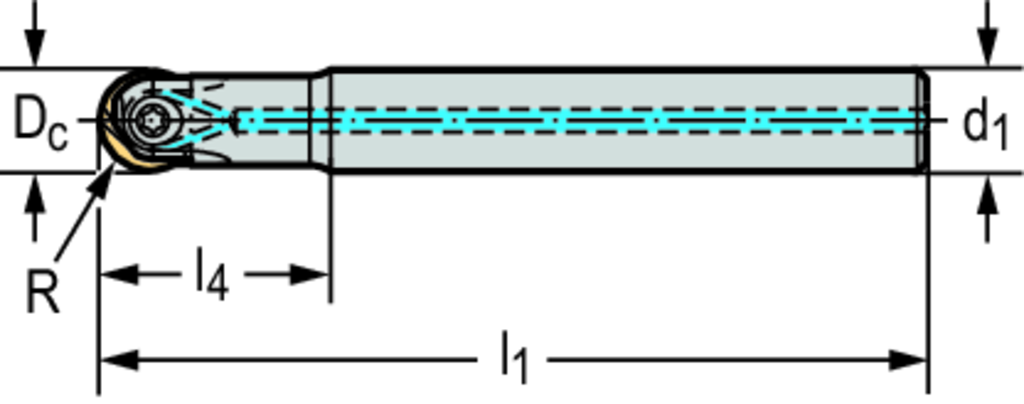

Tool designation (Designation) M5460-012-A12-02-06
Cutting edge diameter (D c) 12 mm
Corner radius (r) 6 mm
Connection diameter (d 1) 12 mm
Maximum projection length (l 4) 32 mm
Overall length (l 1) 130 mm
Number of teeth (Z) 2
weight of item 0,1 kg
Number of indexable inserts (No. of indexable inserts) 1
Insert Shape M5
DESCRIPTION & FEATURES
Profile milling cutters M5460 • Parallel shank • metric • P3 .. 2012 .. • Dc=12mm • Z=2
Article number (J21):
M5460-012-A12-02-06
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
11
Cutting diameter (A1):
12 mm
Body diameter (A3):
10,5 mm
Depth of cut maximum (B2):
6 mm
Protruding length (B3):
32 mm
Usable length (B4):
32 mm
Overall length (B5):
130 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
1
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0120
Connection diameter machine side (C3):
12 mm
Shank length (C4):
45 mm
Mill tool type ISO (D11):
L
Rotational speed maximum (D6):
21800 1/min
Weight of item (D7):
0,092 kg
Adjustment property (D9):
0
Cutting direction (F1):
Right
Face effective cutting edge count (F22):
2
Face mounted insert count (G13):
1
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Master insert identification, position A (J42):
P3201-D12
Data chip provision (J7):
0
