Profile milling cutters F2139.5.16.110.16-CSProfile milling cutters F2139.5.16.110.16-CS
Profile milling cutters F2139.5.16.110.16-CS Profile milling cutters F2139.5.16.110.16-CS

Profile milling cutters F2139.5.16.110.16-CS

€
489.00
EX VAT
€
601.47
INC VAT
Walter
Profile milling cutters F2139.5.16.110.16-CS
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

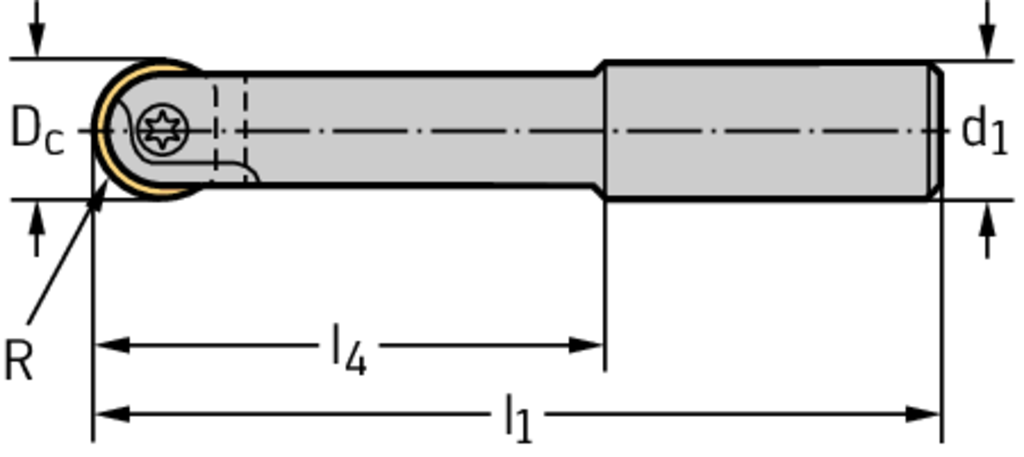

PRODUCT ATTRIBUTES
Tool designation (Designation) F2139.5.16.110.16-CS
Cutting edge diameter (D c) 16 mm
Corner radius (r) 8 mm
Connection diameter (d 1) 16 mm
Maximum projection length (l 4) 43 mm
Overall length (l 1) 110 mm
Number of teeth (Z) 2
weight of item 0,3 kg
Number of indexable inserts (No. of indexable inserts) 1
Insert Shape F2
DESCRIPTION & FEATURES
Profile milling cutters F2139 • Parallel shank • metric • P3 .. 2016 .. • Dc=16mm • Z=2
Article number (J21):
F2139.5.16.110.16-CS
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-87
Tool style code (BLD):
11
Cutting diameter (A1):
16 mm
Body diameter (A3):
14 mm
Depth of cut maximum (B2):
8 mm
Protruding length (B3):
43 mm
Usable length (B4):
43 mm
Overall length (B5):
110 mm
Connection code type machine side (C11):
ZYL
Connection code form at machine side (C12):
01
Connection code unit base machine side (C14):
0
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0160
Connection diameter machine side (C3):
16 mm
Shank length (C4):
48 mm
Mill tool type ISO (D11):
L
Rotational speed maximum (D6):
32200 1/min
Weight of item (D7):
0,265 kg
Adjustment property (D9):
0
Cutting direction (F1):
Right
Face effective cutting edge count (F22):
2
Face mounted insert count (G13):
1
Coolant entry style code (H21):
0
Coolant exit style code (H22):
0
Body material code (H4):
S
Master insert identification, position A (J42):
P3201-D16
Data chip provision (J7):
0
