Profile milling cutters M5460-016-TC08-02-08

€

200.00

EX VAT

€

246.00

INC VAT

Walter

Profile milling cutters M5460-016-TC08-02-08

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

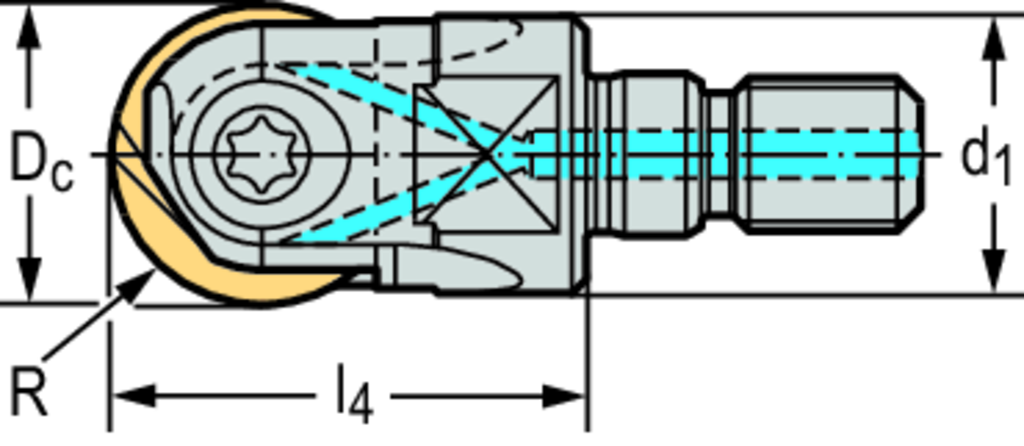

Tool designation (Designation) M5460-016-TC08-02-08

Cutting edge diameter (D c) 16 mm

Corner radius (r) 8 mm

connection diameter (d 1) 14,5 mm

Maximum projection length (l 4) 25 mm

Number of teeth (Z) 2

weight of item 0,02 kg

Number of indexable inserts (No. of indexable inserts) 1

Insert Shape M5

DESCRIPTION & FEATURES

Profile milling cutters M5460 • Cylindrical modular • metric • P3 .. 2016 .. • Dc=16mm • Z=2

Article number (J21):

M5460-016-TC08-02-08

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

16 mm

Body diameter (A3):

14 mm

Depth of cut maximum (B2):

8 mm

Protruding length (B3):

25 mm

Usable length (B4):

25 mm

Overall length (B5):

42,5 mm

Connection code type machine side (C11):

SAW

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0080

Connection diameter machine side (C3):

14,5 mm

Shank length (C4):

17,5 mm

Mill tool type ISO (D11):

Rotational speed maximum (D6):

40000 1/min

Weight of item (D7):

0,024 kg

Adjustment property (D9):

Cutting direction (F1):

Right

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
