QuadFit Large Adaptor A2201.QL76-21-27-Q50QuadFit Large Adaptor A2201.QL76-21-27-Q50
QuadFit Large Adaptor A2201.QL76-21-27-Q50 QuadFit Large Adaptor A2201.QL76-21-27-Q50

QuadFit Large Adaptor A2201.QL76-21-27-Q50

€
707.00
EX VAT
€
869.61
INC VAT
Walter
QuadFit Large Adaptor A2201.QL76-21-27-Q50
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART

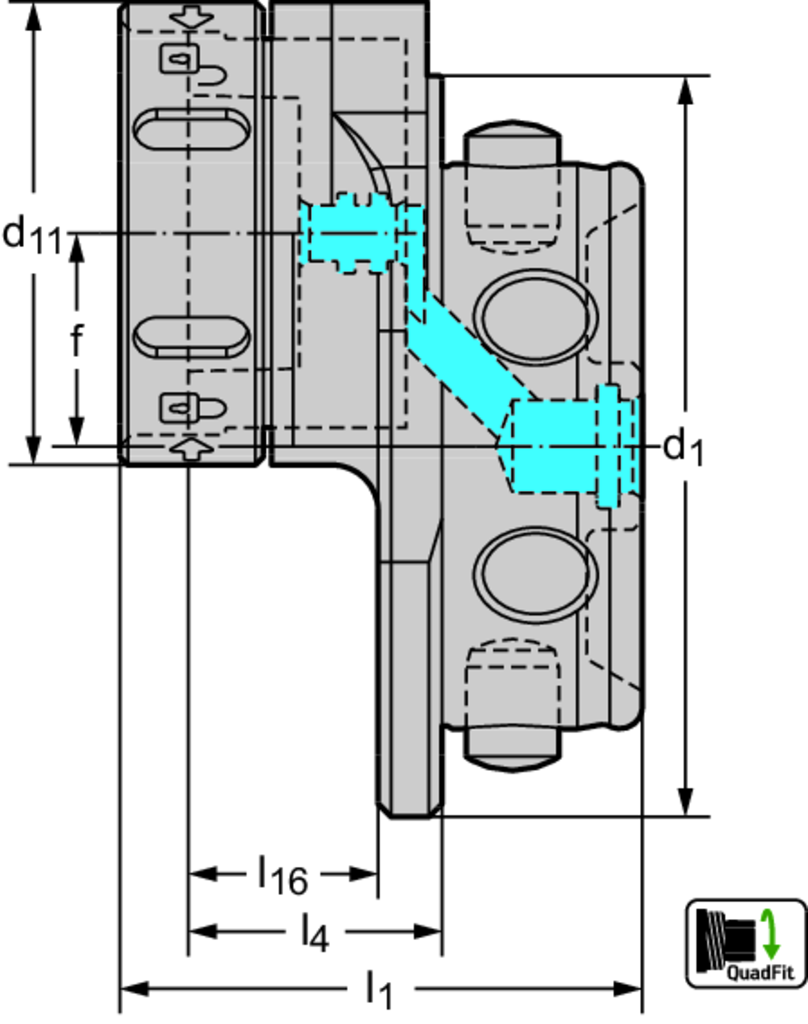

PRODUCT ATTRIBUTES
Tool designation (Designation) A2201.QL76-21-27-Q5
Connection diameter (d 11) Q50
Connection diameter (d 1) QL76
Functional width (f) 0,831 inch
Overall length (l 1) 2,228 inch
Functional length (l 4) 1,063 inch
Useable length (l 16) 0,847 inch
Weight (WT) 1 lbs
Insert Shape A2
DESCRIPTION & FEATURES
QuadFit Large Adaptor A2201 • Accure tec • inch • QuadFit • Right • 76mm
Article number (J21):
A2201.QL76-21-27-Q50
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-89
Flange diameter (A4):
76 mm
Body length 1 (B1):
21,5 mm
Protruding length (B3):
27 mm
Overall length (B4):
56,6 mm
Functional length (B71):
27 mm
Functional height (B72):
0 mm
Functional width (B73):
21,1 mm
Connection code type machine side (C11):
SAW
Connection code form at machine side (C12):
03
Connection code unit base machine side (C14):
9
Connection code style machine side (C15):
5
Connection size code machine side (C2):
0810
Connection diameter machine side (C3):
76 mm
Connection code type workpiece side (C51):
SGL
Connection code form at workpiece side (C52):
01
Connection code unit base workpiece side (C54):
9
Connection code style workpiece side (C55):
5
Connection size code workpiece side (C6):
0500
Weight of item (D7):
1 kg
Cutting direction (E1):
Neutral
Kappa (E2):
0 °
Coolant entry style code (H21):
1
Coolant exit style code (H22):
1
Data chip provision (J7):
0
Insert Type:
76mm
