Radial adaptor C.-ASHA C8-ASHA-55085-32M

Radial adaptor C.-ASHA C8-ASHA-55085-32M

€

556.00

EX VAT

€

683.88

INC VAT

Walter

Radial adaptor C.-ASHA C8-ASHA-55085-32M

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

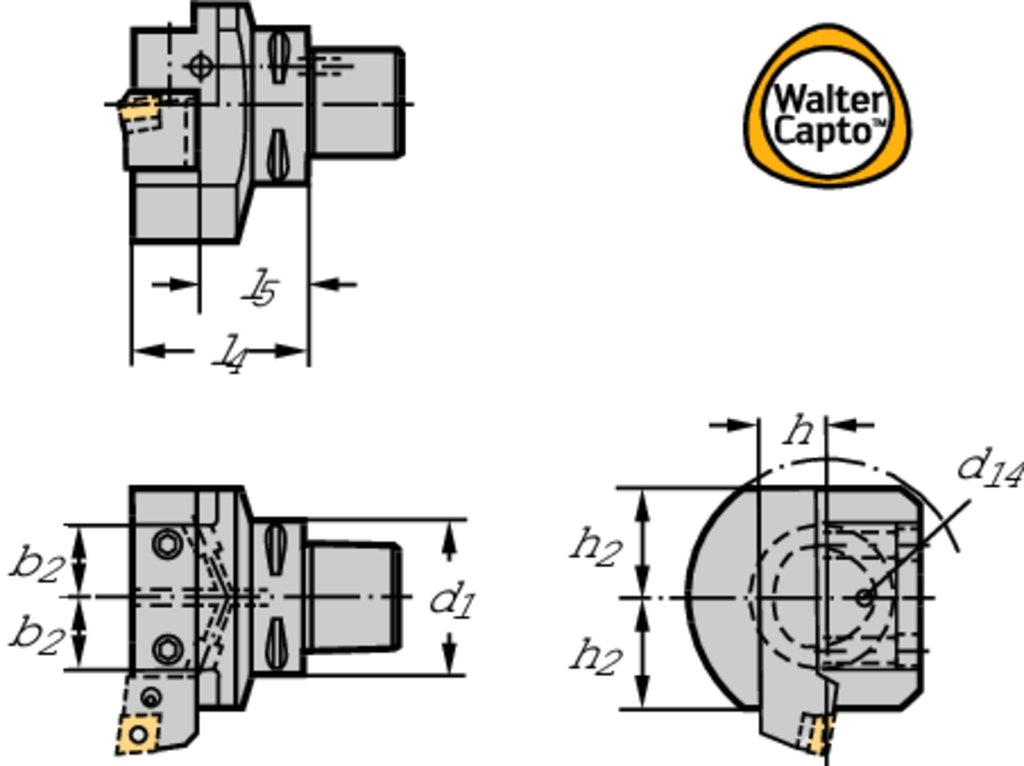

Tool designation (Designation) C8-ASHA-55085-32M

Size C8

Height (h) 32 mm

Radial width (b 2) 80 mm

Height (h 2) 55 mm

connection diameter (d 14) 142 mm

Functional length (l 4) 85 mm

Shank length (l 5) 53 mm

weight of item 4,8 kg

Insert Shape C.

DESCRIPTION & FEATURES

Radial adaptor C.-ASHA • metric • Walter Capto^TM ISO 26623 • neutral • C8 • 80mm

Article number (J21):

C8-ASHA-55085-32M

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

80 mm

Protruding length (B3):

85 mm

Overall length (B4):

133 mm

Functional length (B71):

53 mm

Functional height (B72):

32 mm

Functional width (B73):

55 mm

Overall height (B81):

105 mm

Radial height (B82):

65 mm

Overall width (B91):

110 mm

Radial width (B92):

55 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0800

Connection diameter machine side (C3):

80 mm

Shank length (C4):

48 mm

Connection code type workpiece side (C51):

VKT

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

3220

Connection diameter min (C71):

322 mm

Connection diameter max (C72):

323,4 mm

Weight of item (D7):

4,78 kg

Cutting direction (E1):

Neutral

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-1

Data chip provision (J7):
