Ramping milling cutters M2331.051-B19-03-15Ramping milling cutters M2331.051-B19-03-15
Ramping milling cutters M2331.051-B19-03-15 Ramping milling cutters M2331.051-B19-03-15

Ramping milling cutters M2331.051-B19-03-15

€
620.00
EX VAT
€
762.60
INC VAT
Walter
Ramping milling cutters M2331.051-B19-03-15
P
H
M
S
K
N
O
= First choice
= Second choice
Delivery Information
ADD TO CART
PRODUCT ATTRIBUTES

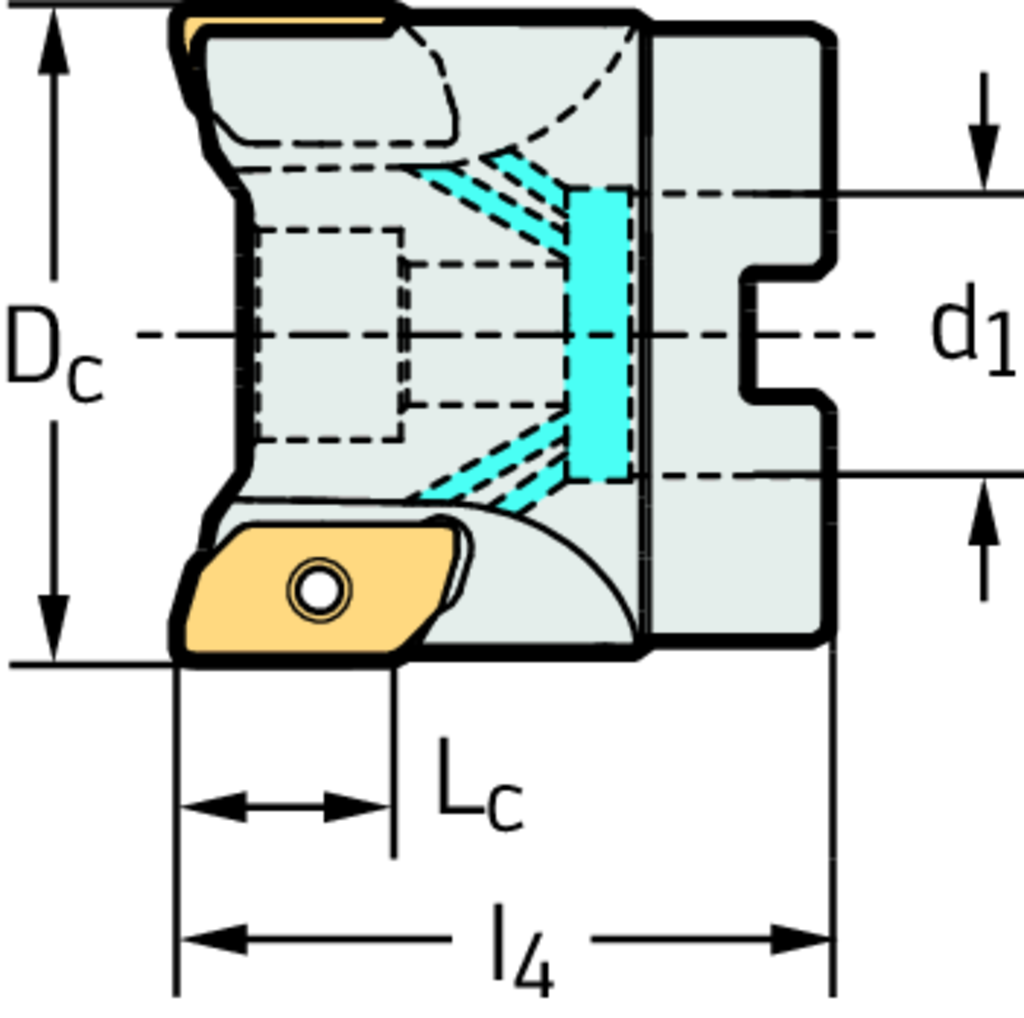

Tool designation (Designation) M2331.051-B19-03-15
Cutting edge diameter (D c) 2 inch
Connection diameter (d 1) 3/4 inch
Maximum projection length (l 4) 2 inch
Cutting edge length (L c) 0,591 inch
Number of teeth (Z) 3
weight of item 0,45 lbs
Number of indexable inserts (No. of indexable inserts) 3
Insert Shape M2
DESCRIPTION & FEATURES
Ramping milling cutters M2331 • Parallel bore DIN 138 transverse keyway • κ=90° • inch • ZD .. 15A4 .. • Dc=51mm • Z=3
Article number (J21):
M2331.051-B19-03-15
Company code (J3):
W
Standard number of properties layout (NSM):
DIN4000-88
Tool style code (BLD):
2
Cutting diameter (A1):
50,8 mm
Body diameter (A3):
49,5 mm
Hub diameter (A4):
50,8 mm
Cutting depth maximum (B2):
15 mm
Overall length (B5):
50,8 mm
Connection code type machine side (C11):
FDA
Connection code form at machine side (C12):
12
Connection code unit base machine side (C14):
3
Connection code style machine side (C15):
0
Connection size code machine side (C2):
0750
Connection diameter machine side (C3):
19,05 mm
Adjustment property (D4):
0
Rotational speed maximum (D6):
34100 1/min
Weight of item (D7):
0,448 kg
Tool cutting edge angle (E1):
90 °
Rake angle radial (E2):
0 °
Rake angle axial (E3):
0 °
Ramping angle maximum (E4):
5,4 °
Cutting direction (F1):
Right
Peripheral effective cutting edge count (F21):
3
Face effective cutting edge count (F22):
3
Face mounted insert count (G13):
3
Coolant entry style code (H21):
1
Coolant exit style code (H22):
3
Body material code (H4):
S
Data chip provision (J7):
0
