Ramping milling cutters M2331.051-H80F-04-15-MA

Ramping milling cutters M2331.051-H80F-04-15-MA

€

1.00

EX VAT

€

1.23

INC VAT

Walter

Ramping milling cutters M2331.051-H80F-04-15-MA

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

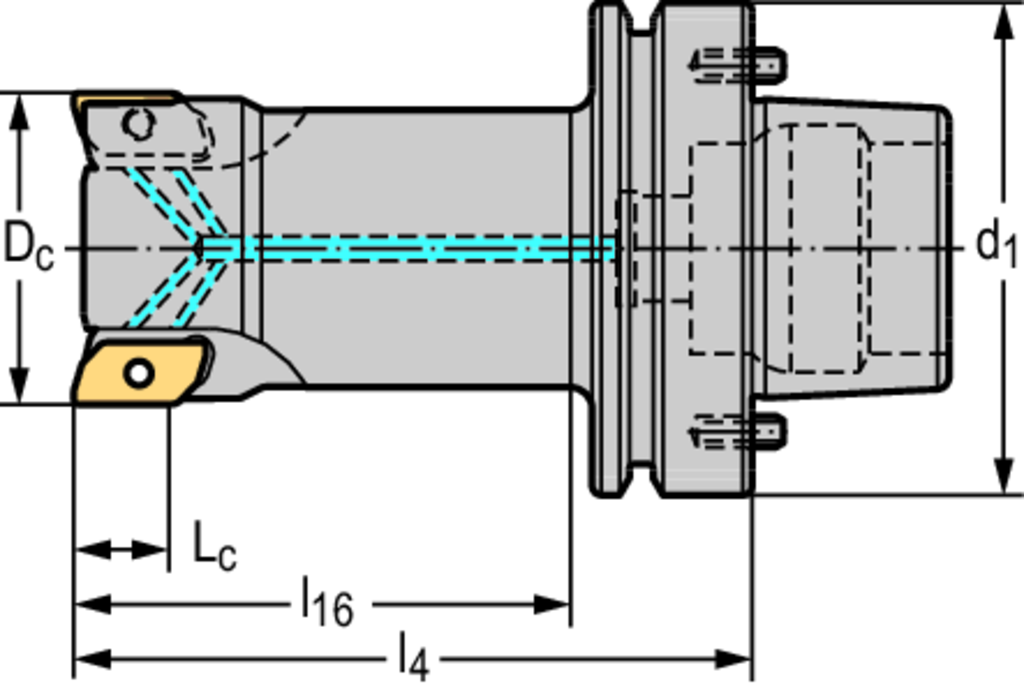

Tool designation (Designation) M2331.051-H80F-04-15-MA

Cutting edge diameter (D c) 2 inch

connection diameter (d 1) HSK-A80/A63 inch

Maximum projection length (l 4) 4,331 inch

Useable length (l 16) 3,15 inch

Cutting edge length (L c) 0,591 inch

Number of teeth (Z) 4

weight of item 1,9 lbs

Number of indexable inserts (No. of indexable inserts) 4

Insert Shape M2

DESCRIPTION & FEATURES

Ramping milling cutters M2331 • κ=90° • inch • ZD .. 15A4 .. • Dc=51mm • Z=4

Article number (J21):

M2331.051-H80F-04-15-MA

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-87

Tool style code (BLD):

Cutting diameter (A1):

50,8 mm

Body diameter (A3):

49,5 mm

Depth of cut maximum (B2):

15 mm

Protruding length (B3):

110 mm

Usable length (B4):

80 mm

Overall length (B5):

141,9 mm

Connection code type machine side (C11):

HSK

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

080P

Connection diameter machine side (C3):

80 mm

Rotational speed maximum (D6):

34100 1/min

Weight of item (D7):

1,917 kg

Adjustment property (D9):

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

8,6 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Data chip provision (J7):
