Ramping milling cutters M2131-063-B22-04-20

Ramping milling cutters M2131-063-B22-04-20

€

724.00

EX VAT

€

890.52

INC VAT

Walter

Ramping milling cutters M2131-063-B22-04-20

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

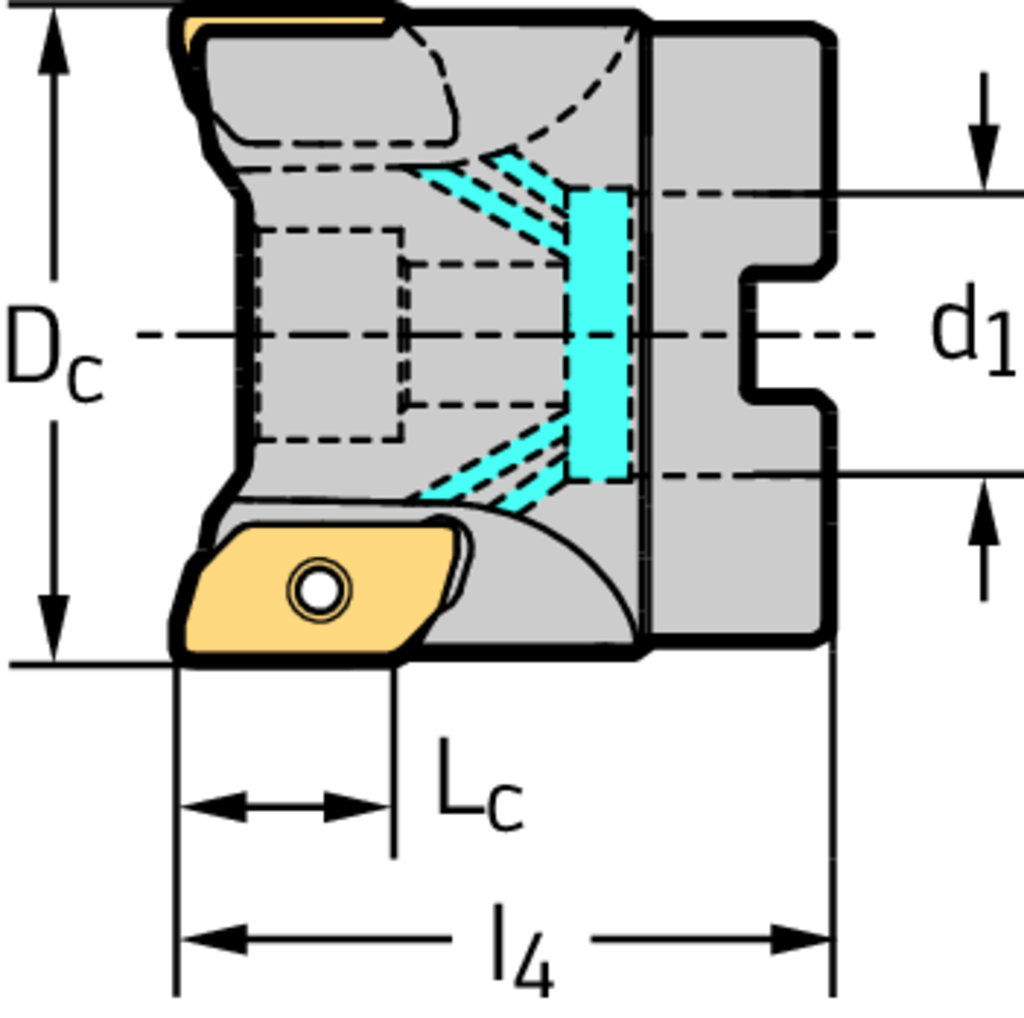

Tool designation (Designation) M2131-063-B22-04-20

Cutting edge diameter (D c) 63 mm

Connection diameter (d 1) 22 mm

Maximum projection length (l 4) 50 mm

Cutting edge length (L c) 20 mm

Number of teeth (Z) 4

weight of item 0,52 kg

Number of indexable inserts (No. of indexable inserts) 4

Maximum admissable speed (n max [rpm]) 23100

Maximum ramping angle (E) 6 Deg

Insert Shape M2

DESCRIPTION & FEATURES

Ramping milling cutters M2131 • Parallel bore DIN 138 transverse keyway • κ=90° • metric • ZD .. 2005 .. • Dc=63mm • Z=4

Article number (J21):

M2131-063-B22-04-20

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-88

Tool style code (BLD):

Cutting diameter (A1):

63 mm

Body diameter (A3):

61,3 mm

Hub diameter (A4):

47 mm

Cutting depth maximum (B2):

20 mm

Overall length (B5):

50 mm

Connection code type machine side (C11):

FDA

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0220

Connection diameter machine side (C3):

22 mm

Adjustment property (D4):

Rotational speed maximum (D6):

23100 1/min

Weight of item (D7):

0,52 kg

Tool cutting edge angle (E1):

90 °

Rake angle radial (E2):

0 °

Rake angle axial (E3):

0 °

Ramping angle maximum (E4):

6 °

Cutting direction (F1):

Right

Peripheral effective cutting edge count (F21):

Face effective cutting edge count (F22):

Face mounted insert count (G13):

Coolant entry style code (H21):

Coolant exit style code (H22):

Body material code (H4):

Master insert identification, position A (J42):

ZDGW 20 05 08

Data chip provision (J7):
