Reduction adaptor C. C5-391.02-32 033A

€

349.00

EX VAT

€

429.27

INC VAT

Walter

Reduction adaptor C. C5-391.02-32 033A

= First choice

= Second choice

Delivery Information

Quantity:

ADD TO CART

PRODUCT ATTRIBUTES

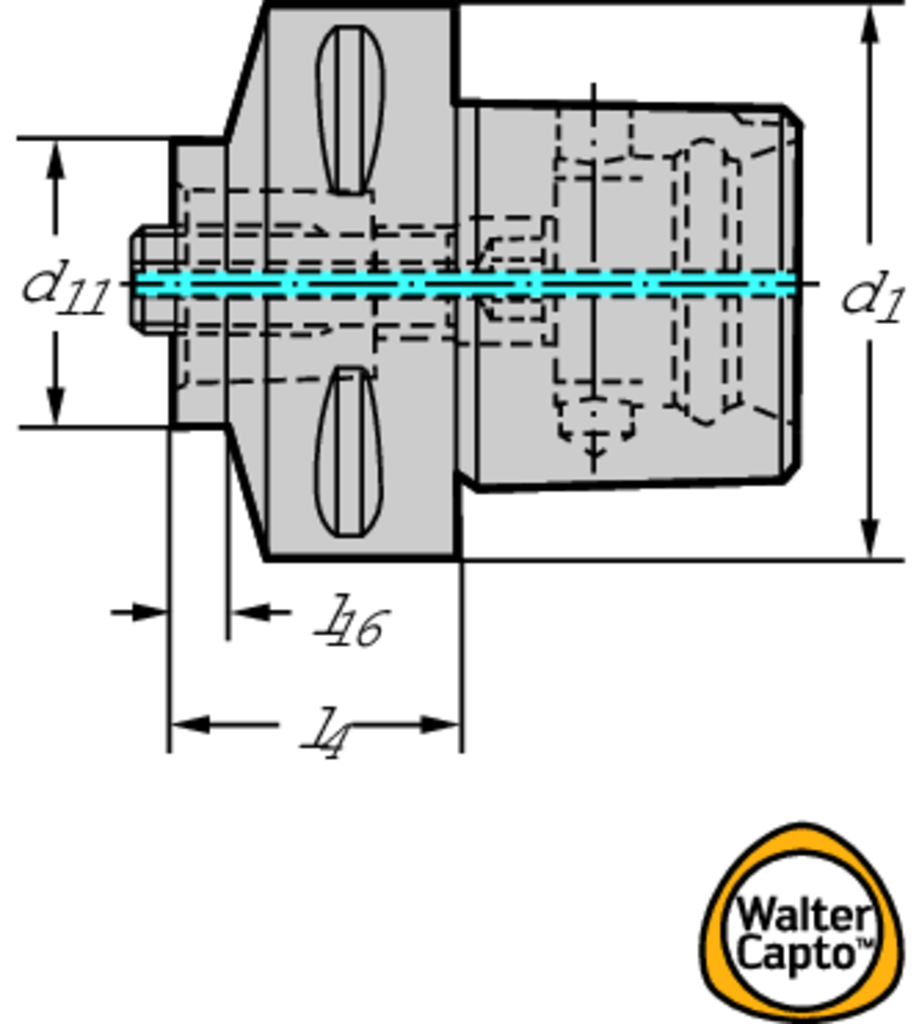

Tool designation (Designation) C5-391.02-32 033A

Connection size code (d 1) C5

connection diameter (d 11) C3

Functional length (l 4) 33 mm

Useable length (l 16) 5 mm

weight of item 0,5 kg

Insert Shape C.

DESCRIPTION & FEATURES

Reduction adaptor C.-391.02 • metric • ISO 26623 • d1=C5 • d11=C3

Article number (J21):

C5-391.02-32 033A

Company code (J3):

Standard number of properties layout (NSM):

DIN4000-89

Body diameter (A1):

32 mm

Body diameter 2 (A2):

50 mm

Body length 1 (B1):

5 mm

Length 2 (B2):

12 mm

Protruding length (B3):

33 mm

Overall length (B4):

63 mm

Functional length (B71):

33 mm

Connection code type machine side (C11):

CCS

Connection code form at machine side (C12):

Connection code unit base machine side (C14):

Connection code style machine side (C15):

Connection size code machine side (C2):

0500

Connection diameter machine side (C3):

50 mm

Shank length (C4):

30 mm

Connection code type workpiece side (C51):

CCS

Connection code form at workpiece side (C52):

Connection code unit base workpiece side (C54):

Connection code style workpiece side (C55):

Connection size code workpiece side (C6):

0320

Rotational speed maximum (D6):

28000 1/min

Weight of item (D7):

0,5 kg

Kappa (E2):

0 °

Coolant entry style code (H21):

Coolant exit style code (H22):

Standard (J1):

ISO26623-2

Data chip provision (J7):
